• Medical & I.T.E safety approvals
• 2 MOPP input to output isolation
• Touch current ≤ 100μA
• Energy efficiency level V
• ≤ 0.1W standby power
• 12V outputs, up to 12W
• Up to 5,000m operating altitude
• Charger turn, light function/charge lamp
| Model Number | Voltage(V) | Current(A) | Rated Power | Ripple&Noise(max) | Voltage Tolerance | Line&Load Regulation | Efficiency(Average) | Start Up |
| UES12LZ11-XXXYYYSPA | 12.0 | 0.01-1.00 | 12W | 150mVpk-pk | ±5% | Line：±5% | 77.9% | ≤3s |
Notes
（*1）Other option are available, please contact our sales representative for details.
（*2）Measured at output connector with 20MHz bandwidth and 0.1uF ceramic in parallel with 10uF electrolytic capacitors.
| Input Voltage Range | 90-264VAC |
| Frequency Range | 47-63Hz |
| Input Current | 0.5A at 100VAC |
| Inrush Current | 50A max at 264VAC cold start |
| Touch Leakage Current(max) | ≤100μA at 264 VAC |

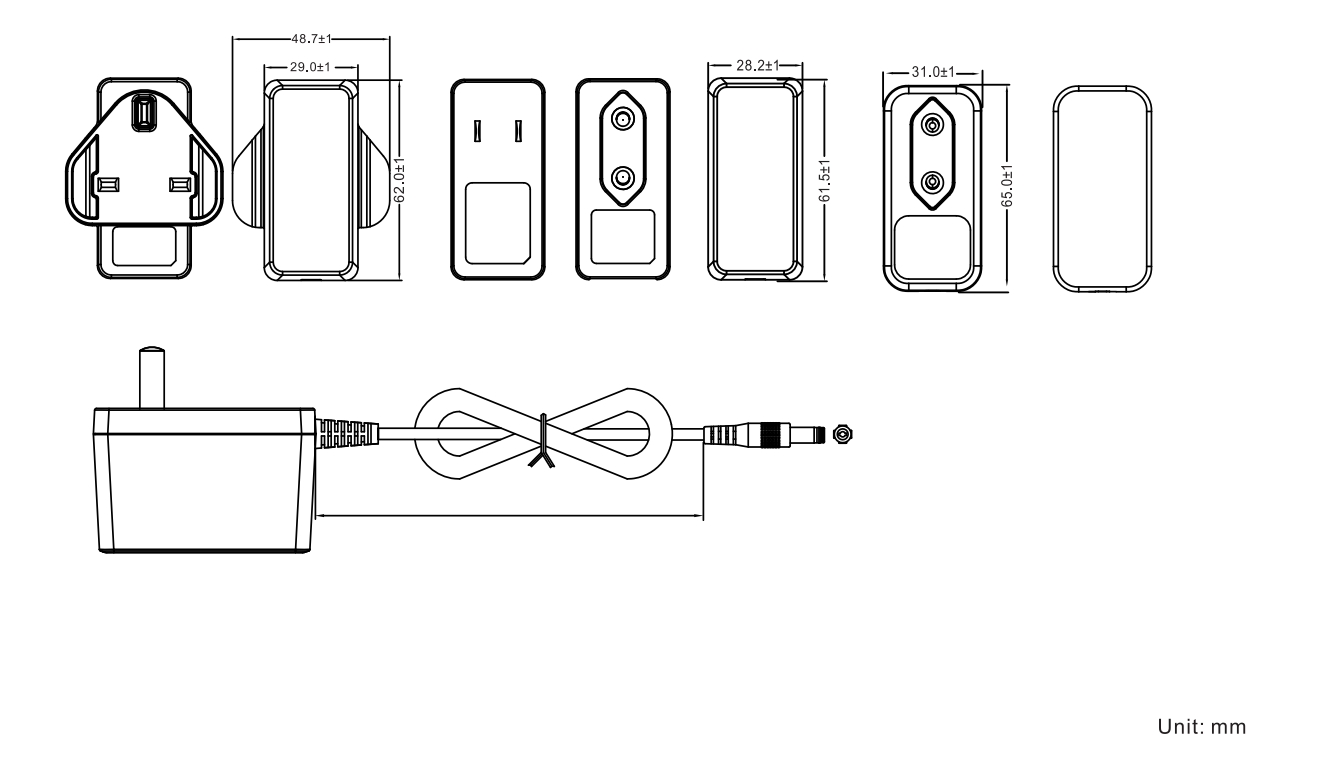

| Dimensions | 61.5(L)*39.5(W)*28.2(H)mm |
| Weight | About 80g |
| MTBF | ＞100,000hrs MIL-HDBK-217 at 25℃ |
Safety Agency/Mark | Medical | ITE |
| CCC | - | GB4943.1 |
| Overload | 110-180% rated output power, auto recovery |
| Over Voltage | 150% Max ouput voltage input to reset |
| Short Circuit | Trip and restart(hiccup mode) |
| Emission | Medical | ITE |
| Conduction | IEC/EN60601-1-2,CISPR 11 | EN55032,CISPR 32 |
| Radiation | IEC/EN60601-1-2,CISPR 11 | EN55032, CISPR 32 |
| Harmonic Currents | EN61000-3-2, ClassA | EN61000-3-2, Class A |
| Voltage Flicker | EN61000-3-3 | EN61000-3-3 |
| Immunity | IEC/EN60601-1-2 | En55035, CISPR 35 |
| ESD | IEC61000-4-2 | ±15KV air，±8KV contact |
| Radiated Immunity | IEC61000-4-3 | 10V/m， 3V/m 80MHz-2.7GMHz |
| EFT/Burst | IEC61000-4-4 | ±2KV on AC port， ±1KV on signal ports |
| Surge | IEC61000-4-5 | ±1KV line to line（different mode） |
| Conducted Immunity | IEC61000-4-6 | 3Vrms，6Vrms（0.15MHz-80MHz） |
| Magnetic Field | IEC61000-4-8 | 30A/m |
| Dip & Interruptions | IEC61000-4-11 | 0%，70%，0% of UT |
| Dielectric Withstand Voltage | 5656VDC input to output |
| Insulation Resistance | 10M Ohms, 500VDC input to output |
