•Ac input voltage range 80-264VAC
•Protections against: short circuit/over current
•Leakage current: ≤ 100μA
•Energy efficiency level VI
•≤ 0.1 W standby power
•Type-C compatible with PD3.0、 QC4.0、PPS
•Waterproof protection up to IP42
| Model Number | Voltage (V) | Current (A) | Rated Power | Ripple & Noise (Max) | Voltage Tolerance | Line& Load Regulation | Efficiency (Average) | Start Up delay |
UES30LCP-SPC | 5.0 | 0.01-3.00 | 15.00W | 600mVpk-pk | ±10% | Line: ±1% Load: ±5% | 86.2% | ≤3s |
| 9.0 | 0.01-3.00 | 27.00W | 600mVpk-pk | ±10% | 86.2% | ≤3s | ||
| 12.0 | 0.01-2.50 | 30.00W | 600mVpk-pk | ±10% | 86.2% | ≤3s | ||
| 15.0 | 0.01-2.00 | 30.00W | 600mVpk-pk | ±10% | 86.2% | ≤3s | ||
| 20.0 | 0.01-1.50 | 30.00 | 600mVpk-pk | ±10% | 86.2% | ≤3s |
Notes
(*1) Measured at output connector with 20MHz bandwidth and 0.1uF ceramic in parallel with 10uF electrolytic capacitors
Input Voltage Range | 80-264VAC |
| Frequency Range | 47-63Hz |
| Input Current | 1.0A at 80VAC |
| Inrush Current | 70A max at 240VAC cold start |
| Touch Leakage Current(Max) | ≤100μA at 264VAC |

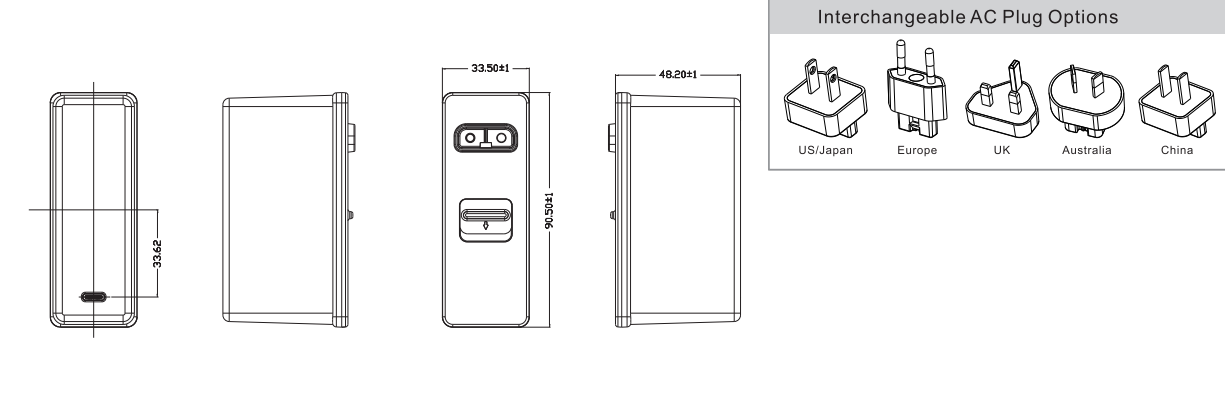

Dimensions(mm) | 48.2(L)x35.5(W)x90.5(H)mm |
| Weight | 105g |
| MTBF | ＞50,000hrs MIL-HDBK-217 at 25°C |
| D |
| Overload | 110-200% rated output power, auto recovery |
| Over Voltage | 120-150% rated output voltage input to reset |
| Short Circuit | Trip and restart (hiccup mode) |
| Safety Agency / Mark | Medical | ITE |
| pengding |
| Emissons | Medical | ITE |
| Conduction | IEC/EN 60601-1-2,CISPR 11 | EN55032, CISPR 32 |
| Radiation | IEC/EN 60601-1-2,CISPR 11 | EN55032, CISPR 32 |
| Harmonic Currents | IEC/EN61000-3-2, Class A | EN61000-3-2, Class A |
| Voltage Flicker | EN61000-3-3 | EN61000-3-3 |
| Immunity | IEC/EN 60601-1-2 | EN55035, CISPR 35 |
| ESD | IEC61000-4-2 | ±15KV air,±8KV contact |
| Radiated Immunity | IEC61000-4-3 | 10V/m ,3V/m 80MHz - 2.7GMHz |
| EFT/Burst | IEC61000-4-4 | ±2KV on AC port, ±1KV on signal ports |
| Surge | IEC61000-4-5 | ±1KV line to line (different mode) |
| Conducted Immunity | IEC61000-4-6 | 3Vrms, 6Vrms (0.15MHz-80MHz) |
| Magnetic Field | IEC61000-4-8 | 30 A/m |
Dips & Interruptions | IEC61000-4-11 | 0%, 70%, 0% of UT |
