•Meets medical & I.T.E. safety
•2 MOPP input to output isolation
•Touch current: ≤100μA
•Energy efficiency level VI
•≤0.075W standby power
•6.1V to 52V outputs, up to 24W
•Up to 5,000m operating altitude
•UL AC plugs
| Model Number | Voltage (V) | Current (A) | Rated Power | Ripple & Noise (Max) | Voltage Tolerance | Line& Load Regulation | Efficiency (Average) | Start Up delay |
UES24LU2-XXXYYYSPA | 6.1-7.0 | 0.01-3.00 | 21.00W | 120mVpk-pk | ±5% | Line: ±1% Load: ±5% | 86.2% | ≤3s |
7.1-8.0 | 0.01-2.62 | 21.00W | 120mVpk-pk | ±5% | 86.2% | ≤3s | ||
8.1-9.0 | 0.01-2.33 | 21.00W | 150mVpk-pk | ±5% | 86.2% | ≤3s | ||
9.1-10.0 | 0.01-2.10 | 21.00W | 150mVpk-pk | ±5% | 86.2% | ≤3s | ||
10.1-11.0 | 0.01-2.18 | 24.00W | 150mVpk-pk | ±5% | 86.2% | ≤3s | ||
11.1-12.0 | 0.01-2.00 | 24.00W | l50mVpk-pk | ±5% | 87.0% | ≤3s | ||
12.1-13.0 | 0.01-1.84 | 24.00W | 200mVpk-pk | ±5% | 87.0% | ≤3s | ||
13.1-14.0 | 0.01-1.71 | 24.00W | 200mVpk-pk | ±5% | 87.0% | ≤3s | ||
14.1-15.0 | 0.01-1.60 | 24.00W | 200mVpk-pk | ±5% | 87.0% | ≤3s | ||
15.1-16.0 | 0.01-1.50 | 24.00W | 200mVpk-pk | ±5% | 87.0% | ≤3s | ||
16.1-17.0 | 0.01-1.41 | 24.00W | 200mVpk-pk | ±5% | 87.0% | ≤3s | ||
17.1-18.0 | 0.01-1.33 | 24.00W | 200mVpk-pk | ±5% | 87.0% | ≤3s | ||
18.1-19.0 | 0.01-1.26 | 24.00W | 200mVpk-pk | ±5% | 87.0% | ≤3s | ||
19.1-20.0 | 0.01-1.20 | 24.00W | 240mVpk-pk | ±5% | 87.0% | ≤3s | ||
20.1-21.0 | 0.01-1.14 | 24.00W | 240mVpk-pk | ±5% | 87.0% | ≤3s | ||
21.1-22.0 | 0.01-1.09 | 24.00W | 240mVpk-pk | ±5% | 87.0% | ≤3s | ||
22.0-23.0 | 0.01-1.04 | 24.00W | 240mVpk-pk | ±5% | 87.0% | ≤3s | ||
23.1-24.0 | 0.01-1.00 | 24.00W | 240mVpk-pk | ±5% | 87.0% | ≤3s | ||
45.1-46.0 | 0.01-0.52 | 24.00W | 300mVpk-pk | ±5% | 87.0% | ≤3s | ||
46.1-47.0 | 0.01-0.51 | 24.00W | 300mVpk-pk | ±5% | 87.0% | ≤3s | ||
47.1-48.0 | 0.01-0.50 | 24.00W | 300mVpk-pk | ±5% | 87.0% | ≤3s | ||
48.1-49.0 | 0.01-0.49 | 24.00W | 300mVpk-pk | ±5% | 87.0% | ≤3s | ||
49.1-50.0 | 0.01-0.48 | 24.00W | 300mVpk-pk | ±5% | 87.0% | ≤3s | ||
50.1-51.0 | 0.01-0.47 | 24.00W | 300mVpk-pk | ±5% | 87.0% | ≤3s | ||
51.1-52.0 | 0.01-0.46 | 24.00W | 300mVpk-pk | ±5% | 87.0% | ≤3s |
Notes
(*1) Other options are available, please contact our sales representative for details.
(*2) Measured at output connector with 20MHz bandwidth and 0.1uF ceramic in parallel with 10uF electrolytic capacitors
Input Voltage Range | 90-264VAC |
| Frequency Range | 47-63Hz |
| Input Current | 0.5A at 90VAC |
| Inrush Current | 70A max at 240VAC cold start |
| Touch Leakage Current(Max) | ≤100μA at 264VAC |

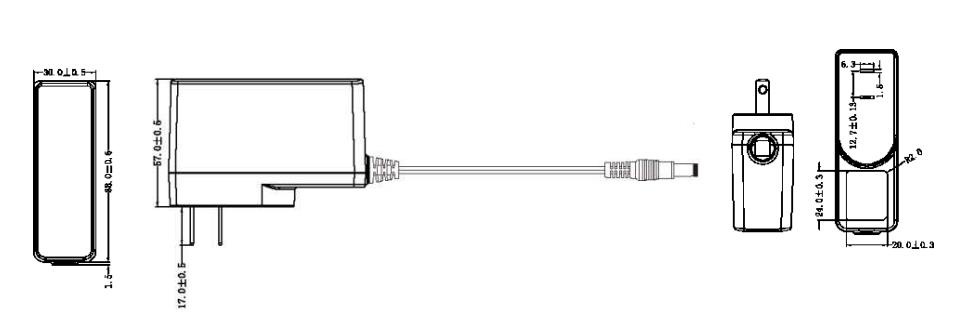

Dimensions(mm) | 88(L)x30(W)x57(H)mm |
| Weight | 160g |
| MTBF | ＞100,000hrs MIL-HKBK-217 at 25°C |
| Overload | 110-200% rated output power, auto recovery |
| Over Voltage | 120-150% rated output voltage input to reset |
| Short Circuit | Trip and restart (hiccup mode) |
| Safety Agency / Mark | Medical | ITE |
CB | IEC60601-1 | IEC62368-1 |
UL | ANSI/AAMI ES60601-1 | - |
| CAN/CSAC22.2 NO. 60601-1 | - |
TUV | - | EN62368-1 |
PSE | - | J62368-1 |
| Emissons | Medical | ITE |
| Conduction | IEC/EN 60601-1-2,CISPR 11 | EN55032, CISPR 32 |
| Radiation | IEC/EN 60601-1-2,CISPR 11 | EN55032, CISPR 32 |
| Harmonic Currents | EN61000-3-2, ClassA | EN61000-3-2, Class A |
| Voltage Flicker | EN61000-3-3 | EN61000-3-3 |
| Immunity | IEC/EN 60601-1-2 | EN55024, CISPR 24 |
| ESD | IEC61000-4-2 | ±15KV air,±8KV contact |
| Radiated Immunity | IEC61000-4-3 | 10V/m , 3V/m 80MHz - 2.7GMHz |
| EFT/Burst | IEC61000-4-4 | ±2KV on AC port, ±1KV on signal ports |
| Surge | IEC61000-4-5 | ±1KV line to line (different mode) |
| Conducted Immunity | IEC61000-4-6 | 3Vrms, 6Vrms (0.15MHz-80MHz) |
| Magnetic Field | IEC61000-4-8 | 30 A/m |
Dips & Interruptions | IEC61000-4-11 | 0%, 70%, 0% of UT |
| Dielectric Withstand Voltage | 5,656VDC input to output |
| Insulation Resistance | 10M Ohms, 500VDC input to output |
