• Meets medical & I.T.E. safety
• 2 MOPP input to output isolation
• Touch current ≤ 100µA
• Earth Leakage current ≤ 5mA
• Energy Efficiency Level VI
• PF>0.95@230Vac full load
• ≤ 0.15W standby power
• 11V-54V outputs,up to 120W
• Up to 5,000m operating altitude
| Model Number | Voltage (V) | Current (A) | Rated Power | Ripple & Noise (max) | Voltage Tolerance | Line & Load Regulation | Efficiency | Start Up Delay |
| UES120D"Z"-XXXYYYSPA | 11.0-12.0 | 0.01-10.0 | 120W | 150mVpk-pk | ±5% | Line: ±1% Load: ±5% | 92.00% | ≤3s |
| 12.1-13.0 | 0.01-9.23 | 120W | 150mVpk-pk | ±5% | 92.00% | ≤3s | ||
| 13.1-14.0 | 0.01-8.57 | 120W | 150mVpk-pk | ±5% | 92.00% | ≤3s | ||
| 14.1-15.0 | 0.01-8.00 | 120W | 150mVpk-pk | ±5% | 92.00% | ≤3s | ||
| 17.1-18.0 | 0.01-6.66 | 120W | 180mVpk-pk | ±5% | 93.00% | ≤3s | ||
| 18.1-19.0 | 0.01-6.31 | 120W | 180mVpk-pk | ±5% | 93.00% | ≤3s | ||
| 19.1-20.0 | 0.01-6.00 | 120W | 200mVpk-pk | ±5% | 93.00% | ≤3s | ||
| 20.1-21.0 | 0.01-5.71 | 120W | 200mVpk-pk | ±5% | 93.00% | ≤3s | ||
| 21.1-22.0 | 0.01-5.45 | 120W | 200mVpk-pk | ±5% | 93.00% | ≤3s | ||
| 22.1-23.0 | 0.01-5.21 | 120W | 200mVpk-pk | ±5% | 93.00% | ≤3s | ||
| 23.1-24.0 | 0.01-5.00 | 120W | 240mVpk-pk | ±5% | 93.00% | ≤3s | ||
| 24.1-25.0 | 0.01-4.80 | 120W | 240mVpk-pk | ±5% | 93.00% | ≤3s | ||
| 25.1-26.0 | 0.01-4.61 | 120W | 240mVpk-pk | ±5% | 93.00% | ≤3s | ||
| 26.1-27.0 | 0.01-4.44 | 120W | 240mVpk-pk | ±5% | 93.00% | ≤3s | ||
| 35.1-36.0 | 0.01-3.33 | 120W | 300mVpk-pk | ±5% | 94.00% | ≤3s | ||
| 36.1-37.0 | 0.01-3.24 | 120W | 300mVpk-pk | ±5% | 94.00% | ≤3s | ||
| 37.1-38.0 | 0.01-3.15 | 120W | 300mVpk-pk | ±5% | 94.00% | ≤3s | ||
| 38.1-39.0 | 0.01-3.07 | 120W | 300mVpk-pk | ±5% | 94.00% | ≤3s | ||
| 39.1-40.0 | 0.01-3.00 | 120W | 300mVpk-pk | ±5% | 94.00% | ≤3s | ||
| 47.1-48.0 | 0.01-2.50 | 120W | 400mVpk-pk | ±5% | 94.00% | ≤3s | ||
| 48.1-49.0 | 0.01-2.44 | 120W | 400mVpk-pk | ±5% | 94.00% | ≤3s | ||
| 49.1-50.0 | 0.01-2.40 | 120W | 400mVpk-pk | ±5% | 94.00% | ≤3s | ||
| 50.1-51.0 | 0.01-2.35 | 120W | 400mVpk-pk | ±5% | 94.00% | ≤3s | ||
| 51.1-52.0 | 0.01-2.30 | 120W | 400mVpk-pk | ±5% | 94.00% | ≤3s | ||
| 52.1-53.0 | 0.01-2.26 | 120W | 400mVpk-pk | ±5% | 94.00% | ≤3s | ||
| 53.1-54.0 | 0.01-2.22 | 120W | 400mVpk-pk | ±5% | 94.00% | ≤3s |
Model encoding: replace "Z" with "1" for CB (Class II), "2" for C6 (Class l)AC inlets
Notes
(*1) Other options are available, please contact our sales representative for details
Input Voltage Range | 90-264VAC(Class Ⅰ);80-264VAC(Class Ⅱ) |
| Frequency Range | 47-63Hz |
| Input Current | 2.0A at 80/90VAC |
| Inrush Current | 120A max at 240VAC cold start |
| Touch Leakage Current (max) | ≤ 100µA at 264VAC |

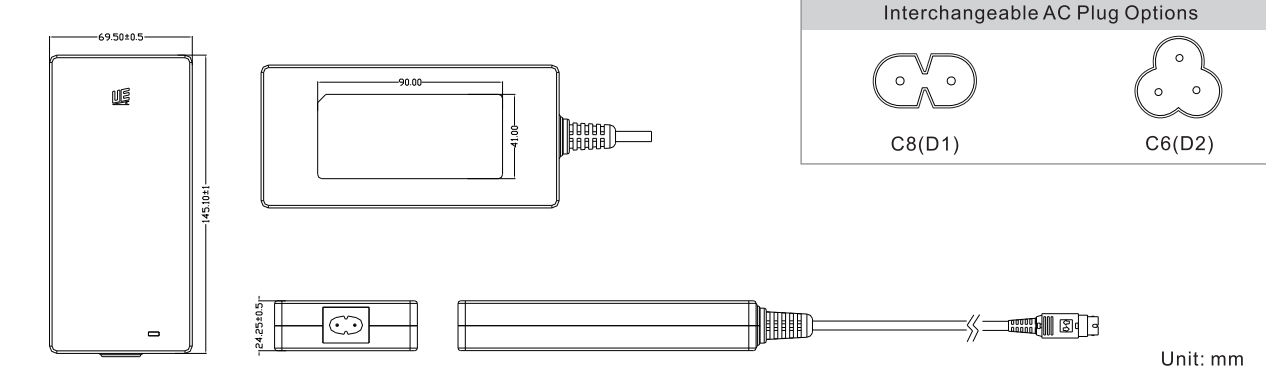

Dimensions(mm) | 145.1 (L)x69.5(W)x24.25(H)mm |
| Weight | 450g |
| MTBF | ＞100,000hrs MIL-HKBK-217 at 25°C |
| Overload | 120-170% rated output power, auto recovery |
| Over Voltage | 120-150% rated output voltage input to reset |
| Short Circuit | Trip and restart (hiccup mode) |
| Safety Agency / Mark | Medical | ITE |
| CB | IEC60601-1 / IEC60601-1-11 | IEC62368-1 |
| UL | ANSI/AAMI ES60601-1 / 60601-1-11 | UL62368 |
| CAN/CSA-C22.2 NO. 60601-1 | ||
| TUV SUD/Mark | EN60601-1 / EN60601-1-11 | - |
| TUV SUD/GS | - | EN62368-1 |
| CE | - | EN62368 |
| CCC | - | GB4943.1 |
| PSE | - | J62368 |
| KC | - | K60950-1 |
| BSMI | - | CNS14436-1 |
| FCC | - | FCC PART 15 |
| RCM | - | AS/NZS62368.1 |
| Emissons | Medical | ITE |
| Conduction | IEC/EN 60601-1-2,CISPR 11 | EN55032,CISPR 32 |
| Radiation | IEC/EN 60601-1-2,CISPR 11 | EN55032,CISPR 32 |
| Harmonic Currents | EN61000-3-2, Class A | EN61000-3-2, Class A |
| Voltage Flicker | EN61000-3-3 | EN61000-3-3 |
| Immunity | IEC/EN 60601-1-2 | EN55035, CISPR 35 |
| ESD | IEC61000-4-2 | ±15KV air, ±8KV contact |
| Radiated Immunity | IEC61000-4-3 | 10V/m ,3V/m 80MHz - 2.7GMHz |
| EFT/Burst | IEC61000-4-4 | ±2KV on AC port, ±1KV on signal ports |
| Surge | IEC61000-4-5 | ±2KV line to line (different mode) |
| Conducted Immunity | IEC61000-4-6 | 3Vrms, 6Vrms (0.15MHz-80MHz) |
| Magnetic Field | IEC61000-4-8 | 30 A/m |
Dips & Interruptions | IEC61000-4-11 | 0%, 70%, 0% of UT |
| Dielectric Withstand Voltage | 5,656VDC for Class I & Class 11 input to output |
| Insulation Resistance | 10M Ohms, 500VDC input to output |
