• Meets medical & I.T.E. safety
• 2 MOPP input to output isolation
• Touch current ≤ 10µA
• Energy efficiency level VI
• ≤ 0.075W standby power
• 4.2V-12V outputs, up to 6W
• Up to 5,000m operating altitude
• Interchangeable AC plugs
| Model Number | Voltage (V) | Current (A) | Rated Power | Ripple & Noise (Max) | Voltage tolerance | Line& Load Regulation | Efficiency (Average) | Start Up delay |
| UES06WNCP1-XXXYYYSPA | 4.2 | 0.01-1.20 | 5.04W | 200mVpk-pk | ±5% | Line: ±1% Load: ±5% | 73.83% | ≤3s |
| 5.0-6.0 | 0.01-1.00 | 6.00W | 150mVpk-pk | ±5% | 73.77% | ≤3s | ||
| 6.1-7.0 | 0.01-0.86 | 6.00W | 150mVpk-pk | ±5% | 78.16% | ≤3s | ||
| 7.1-8.0 | 0.01-0.75 | 6.00W | 200mVpk-pk | ±5% | 78.26% | ≤3s | ||
| 8.1-8.9 | 0.01-0.67 | 6.00W | 200mVpk-pk | ±5% | 78.38% | ≤3s | ||
| 9.0-10.0 | 0.01-0.60 | 6.00W | 200mVpk-pk | ±5% | 78.35% | ≤3s | ||
| 10.1-11.0 | 0.01-0.54 | 6.00W | 200mVpk-pk | ±5% | 78.42% | ≤3s | ||
| 11.1-12.0 | 0.01-0.50 | 6.00W | 200mVpk-pk | ±5% | 78.53% | ≤3s |
Notes
(*1, 2 ,3, 4) Other options are available, please contact our sales representative for details.
Input Voltage Range | 80-264VAC |
| Frequency Range | 47-63Hz |
| Input Current | 0.2A at 90VAC |
| Inrush Current | 30A max at 240VAC cold start |
| Touch Leakage Current(max) | ≤ 10μA at 264VAC |

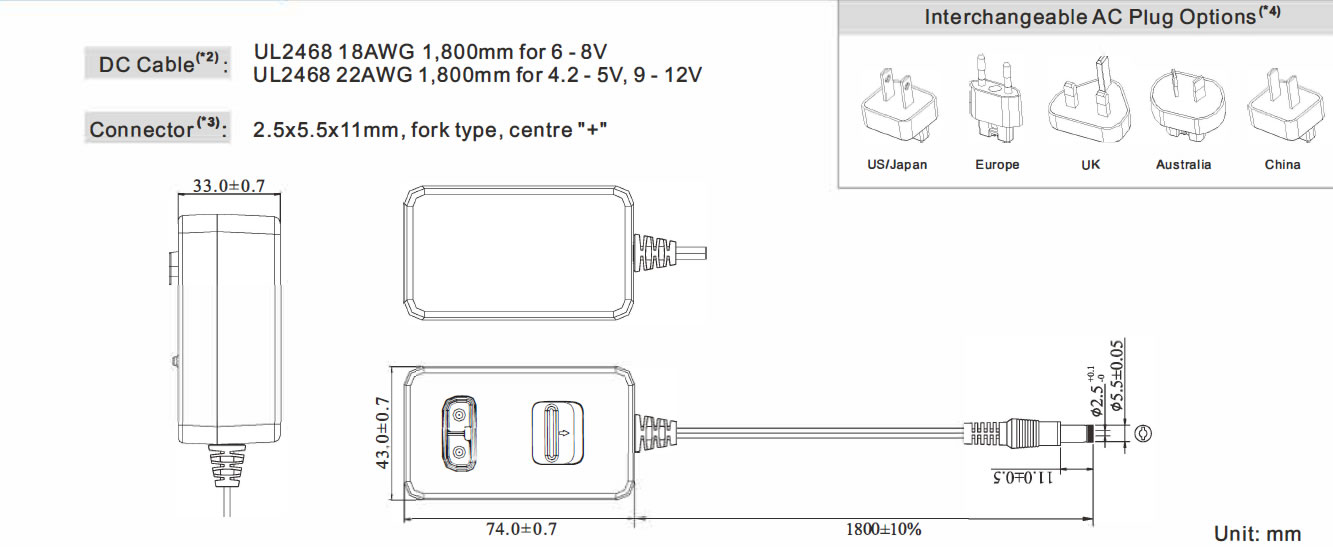

Dimensions(mm) | 74.0{L)x43.0(W)x33.0(H)mm |
| Weight | 85g |
| MTBF | ＞100,000hrs MIL-HKBK-217 at 25°C |
| Overload | 120-150% rated output power, auto recovery |
| Over Voltage | 120-150% rated output voltage input to reset |
| Short Circuit | Trip and restart (hiccup mode) |
| Safety Agency / Mark | Medical | ITE |
| CB | IEC60601-1/60601-1-11 | IEC62368 |
| UL | ANSI/AAMI ES60601-1/60601-1-11 | UL62368 |
| CAN/CSA-C22.2 NO. 60601-1 | - | |
| TUV SUD/Mark | EN60601-1/EN60601-1-11 | - |
| TUV SUD/GS | - | EN62368 |
| RCM | - | AS/NZS 62368 |
| CCC | - | GB4943.1 |
| PSE | - | J62368 |
| KC | - | K60950-1 |
| CE | - | EN62368 |
| FCC | - | FCC PART 15 |
| Emissons | Medical | ITE |
| Conduction | IEC/EN 60601-1-2,CISPR 11 | EN55032, CISPR 32 |
| Radiation | IEC/EN 60601-1-2,CISPR 11 | EN55032, CISPR 32 |
| Harmonic Currents | IEC/EN61000-3-2, Class A | EN61000-3-2, Class A |
| Voltage Flicker | EN61000-3-3 | EN61000-3-3 |
| Immunity | IEC/EN 60601-1-2 | EN55035, CISPR 35 |
| ESD | IEC61000-4-2 | ±15KV air,±8KV contact |
| Radiated Immunity | IEC61000-4-3 | 10V/m ,3V/m 80MHz - 2700MHz |
| EFT/Burst | IEC61000-4-4 | ±2KV on AC port, ±1KV on signal ports |
| Surge | IEC61000-4-5 | ±1KV line to line (different mode) |
| Conducted Immunity | IEC61000-4-6 | 3Vrms, 6Vrms (0.15MHz-80MHz) |
| Magnetic Field | IEC61000-4-8 | 30 A/m |
Dips & Interruptions | IEC61000-4-11 | 0%, 70%, 0% of UT |
| Dielectric Withstand Voltage | 5,656VDC input to output |
| Insulation Resistance | 10M Ohms, 500VDC input to output |
