• Medical & ITE safety approvals
• 2 MOPP input to output isolation
• Touch current ≤100μA
• Energy efficiency level VI
• ≤ 0.075W standby power
• 5V to 48V outputs, up to 36W
• Up to 5,000m operating altitude
| Model Number | Voltage (V) | Current (A) | Rated Power | Ripple & Noise (max) | Voltage Tolerance | Line & Load Regulation | Efficiency | Start Up Delay |
| UES36C1-XXXYYYSPA | 5.0 | 0.01-6.00 | 30.00W | 200mVpk-pk | ±8% | Line: ±1% Load: ±5% | 85.00% | ≤3s |
| 5.1-5.9 | 0.01-5.00 | 30.00W | 200mVpk-pk | ±5% | 88.30% | ≤3s | ||
| 7.5-14.0 | 0.01-4.00 | 36.00W | 200mVpk-pk | ±5% | 88.30% | ≤3s | ||
| 14.1-21.0 | 0.01-2.40 | 36.00W | 200mVpk-pk | ±5% | 88.30% | ≤3s | ||
| 21.1-30.0 | 0.01-1.63 | 36.00W | 200mVpk-pk | ±5% | 88.30% | ≤3s | ||
| 30.1-48.0 | 0.01-1.16 | 36.00W | 300mVpk-pk | ±5% | 88.30% | ≤3s |
Input Voltage Range | 80-264VAC |
| Frequency Range | 47-63Hz |
| Input Current | 1.0A at 80VAC |
| Inrush Current | 70A max at 240VAC cold start |
| Touch Leakage Current(max) | ≤ 100μA at 264VAC |

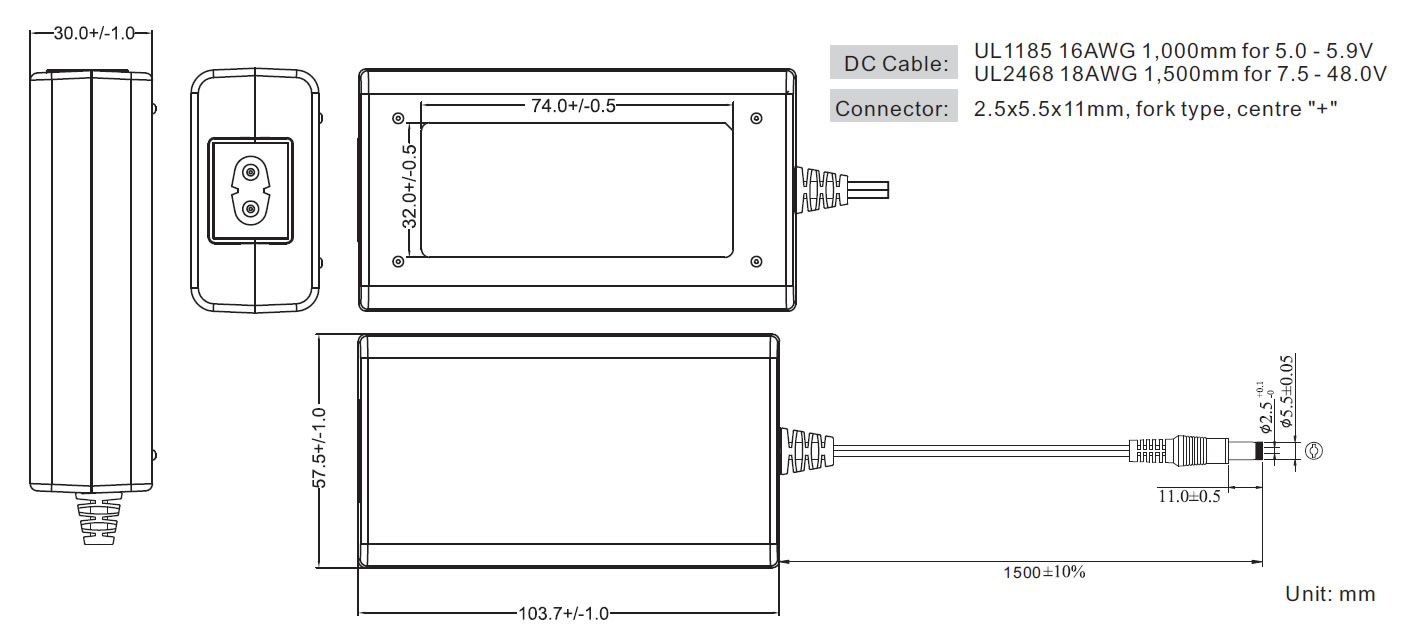

Dimensions(mm) | 103.7(L)x57.5(W)x30.0(H)mm |
| Weight | 210g |
| MTBF | ＞100,000hrs MIL-HKBK-217 at 25°C |
| Isolation | 4,000VAC Input to Output |
| Overload | 120-200% rated output power, auto recovery |
| Over Voltage | 120-150% rated output voltage input to reset |
| Short Circuit | Trip and restart (hiccup mode) |
| Safety Agency / Mark | Medical | ITE |
| CB | IEC60601-1/60601-1-11 | IEC62368 |
| ANSI/AAMI ES60601-1/60601-1-11 | ||
| UL | CAN/CSA-C22.2 NO. 60601-1 | UL62368 |
| TUV SUD/Mark | EN60601-1/EN60601-1-11 | - |
| TUV SUD/GS | - | EN62368 |
| CE | - | EN62368 |
| CCC | - | GB4943 |
| PSE | - | J62368 |
| KC | - | K60950 |
| RCM | - | GB4943.1 |
| Emissons | Medical | ITE |
| Conducted | IEC/EN 60601-1-2,CISPR 11 | EN55032, CISPR 32 |
| Radiated | IEC/EN 60601-1-2,CISPR 11 | EN55032, CISPR 32 |
| Harmonic Currents | IEC/EN61000-3-2, Class A | EN61000-3-2, Class C |
| Voltage Flicker | EN61000-3-3 | EN61000-3-3 |
| Immunity | IEC/EN 60601-1-2 | EN55035, CISPR 35 |
| ESD | EN61000-4-2 | ±15KV air,±8KV contact |
| Radiated Immunity | EN61000-4-3 | 10V/m ,3V/m 80MHz - 2700MHz |
| EFT/Burst | EN61000-4-4 | ±2KV on AC port, ±1KV on signal ports |
| Surge | EN61000-4-5 | ±4KV line to line (different mode) |
| Conducted Immunity | EN61000-4-6 | 3Vrms, 6Vrms (0.15MHz-80MHz) |
| Magnetic Field | EN61000-4-8 | 30 A/m |
Dips & Interruptions | EN61000-4-11 | 0%, 70%, 0% of UT |
| Dielectric Withstand Voltage | 5,656VDC input to output |
| Insulation Resistance | 100M Ohms, 500VDC input to output |
