• Meets medical & I.T.E. safety
• 2 MOPP input to output isolation
• Energy Efficiency level V
• Touch current ≤ 10µA
• ≤ 0.3W standby power
• 5V and 6V output,up to 5W
• Up to 5,000m operating altitude
| Model Number | Voltage (V) | Current (A) | Rated Power | Ripple & Noise (max) | Voltage Tolerance | Line & Load Regulation | Efficiency | Start up Delay |
| UE05LC3-XXXYYYSPA | 5.0 | 0.01-1.00 | 5.00W | 200mVpk-pk | ±8％ | Line：±5％ Load：±5％ | 68.17% | ≤3s |
| 6.0 | 0.01-0.80 | 4.80W | 200mVpk-pk | ±8％ | 72.02% | ≤3s |
Notes
(*1) Other options are available, please contact our sales representative for details.
Input Voltage Range | 90-264VAC |
| Frequency Range | 47-63Hz |
| Input Current | 0.2A at 100VAC |
| Inrush Current | 50A max at 240VAC cold start |
| Touch Leakage Current (max) | ≤10μA at 264VAC |

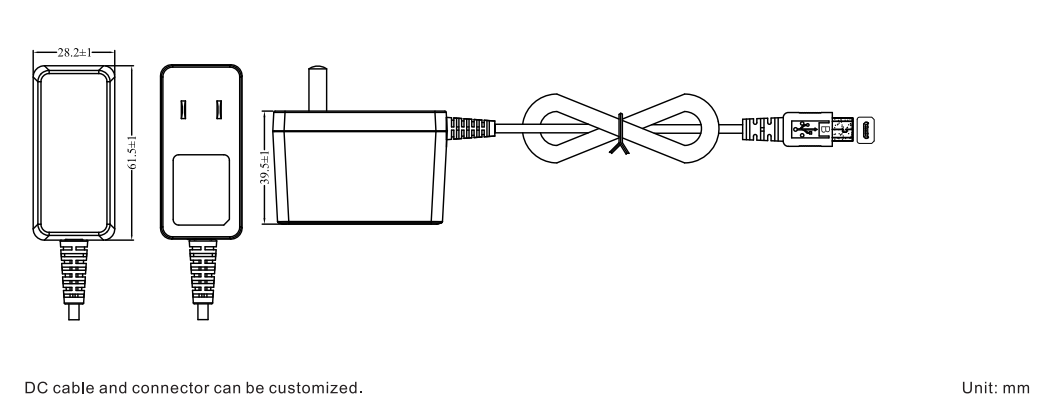

Dimensions(mm) | 61.5{L)x39.5(W)x28.2(H)mm |
| Weight | 60g |
| MTBF | ＞100,000hrs MIL-HDBK-217 at 25°C |
| Overload | 110-300% rated output power, auto recovery |
| Over Voltage | 200% Max output voltage input to reset |
| Short Circuit | Trip and restart (hiccup mode) |
| Safety Agency / Mark | Medical | ITE |
| CCC | - | GB4943.1 |
| Emissons | Medical | ITE |
| Conduction | IEC/EN 60601-1-2,CISPR 11 | EN55032,CISPR 32 |
| Radiation | IEC/EN 60601-1-2,CISPR 11 | EN55032, CISPR 32 |
| Harmonic Currents | EN61000-3-2, Class A | EN61000-3-2, Class A |
| Voltage Flicker | EN61000-3-3 | EN61000-3-3 |
| Immunity | IEC/EN 60601-1-2 | En55035, CISPR 35 |
| ESD | IEC61000-4-2 | ±15KV air,±8KV contact |
| Radiated Immunity | IEC61000-4-3 | 10V/m ,3V/m 80MHz - 2.7GMHz |
| EFT/Burst | IEC61000-4-4 | ±2KV on AC port, ±1KV on signal ports |
| Surge | IEC61000-4-5 | ±1KV line to line (different mode) |
| Conducted Immunity | IEC61000-4-6 | 3Vrms, 6Vrms (0.15MHz-80MHz) |
| Magnetic Field | IEC61000-4-8 | 30 A/m |
Dips & Interruptions | IEC61000-4-11 | 0%, 70%, 0% of UT |
| Dielectric Withstand Voltage | 5,656VDC input to output |
| Insulation Resistance | 10M Ohms, 500VDC input to output |
