• Meets medical & I.T.E. safety
• 2 MOPP input to output isolation
• Touch current: ≤ 100µA
• Energy efficiency level VI
• Coe VS Tier 2(2016)
• ≤ 0.075W standby power
• 6.1V - 52V outputs, up to 24W
• Up to 5,000m operating altitude
• Interchangeable AC plugs
| Model No. | Voltage (V) | Current (A) | Rated Power | Ripple & Noise (max) (*2) | Voltage tolerance | Line& Load Regulation | Efficiency (Average) Min | Start Up delay |
| UES24LCP-XXXYYYSPA UES24LCP-XXXYYYSPA-OP | 6.1-7.0 | 0.01-3.00 | 21W | 120mVpk-pk | ±5% | Line:±1% Load: ±5% | 86.20% | ≤3s |
| 7.1-8.0 | 0.01-2.62 | 21W | 120mVpk-pk | ±5% | 86.20% | ≤3s | ||
| 8.1-9.0 | 0.01-2.33 | 21W | 150mVpk-pk | ±5% | 86.20% | ≤3s | ||
| 9.1-10.0 | 0.01-2.10 | 21W | 150mVpk-pk | ±5% | 86.20% | ≤3s | ||
| 10.1-11.0 | 0.01-2.18 | 24W | 150mVpk-pk | ±5% | 87.00% | ≤3s | ||
| 11.1-12.0 | 0.01-2.00 | 24W | 150mVpk-pk | ±5% | 87.00% | ≤3s | ||
| 12.1-13.0 | 0.01-1.84 | 24W | 200mVpk-pk | ±5% | 87.00% | ≤3s | ||
| 13.1-14.0 | 0.01-1.71 | 24W | 200mVpk-pk | ±5% | 87.00% | ≤3s | ||
| 14.1-15.0 | 0.01-1.60 | 24W | 200mVpk-pk | ±5% | 87.00% | ≤3s | ||
| 15.1-16.0 | 0.01-1.50 | 24W | 200mVpk-pk | ±5% | 87.00% | ≤3s | ||
| 16.1-17.0 | 0.01-1.41 | 24W | 200mVpk-pk | ±5% | 87.00% | ≤3s | ||
| 17.1-18.0 | 0.01-1.33 | 24W | 200mVpk-pk | ±5% | 87.00% | ≤3s | ||
| 18.1-19.0 | 0.01-1.26 | 24W | 200mVpk-pk | ±5% | 87.00% | ≤3s | ||
| 19.1-20.0 | 0.01-1.20 | 24W | 240mVpk-pk | ±5% | 87.00% | ≤3s | ||
| 20.1-21.0 | 0.01-1.14 | 24W | 240mVpk-pk | ±5% | 87.00% | ≤3s | ||
| 21.1-22.0 | 0.01-1.09 | 24W | 240mVpk-pk | ±5% | 87.00% | ≤3s | ||
| 22.0-23.0 | 0.01-1.04 | 24W | 240mVpk-pk | ±5% | 87.00% | ≤3s | ||
| 23.1-24.0 | 0.01-1.00 | 24W | 240mVpk-pk | ±5% | 87.00% | ≤3s | ||
| 45.1-46.0 | 0.01-0.52 | 24W | 300mVpk-pk | ±5% | 87.00% | ≤3s | ||
| 46.1-47.0 | 0.01-0.51 | 24W | 300mVpk-pk | ±5% | 87.00% | ≤3s | ||
| 47.1-48.0 | 0.01-0.50 | 24W | 300mVpk-pk | ±5% | 87.00% | ≤3s | ||
| 48.1-49.0 | 0.01-0.48 | 24W | 300mVpk-pk | ±5% | 87.00% | ≤3s | ||
| 49.1-50.0 | 0.01-0.48 | 24W | 300mVpk-pk | ±5% | 87.00% | ≤3s | ||
| 50.1-51.0 | 0.01-0.47 | 24W | 300mVpk-pk | ±5% | 87.00% | ≤3s | ||
| 51.1-52.0 | 0.01-0.46 | 24W | 300mVpk-pk | ±5% | 87.00% | ≤3s |
Notes
(*1, 2) Other options are available, please contact our sales representative for details.
Input Voltage Range | 90-264VAC |
| Frequency Range | 47-63Hz |
| Input Current | 0.5A at 90VAC |
| Inrush Current | 70A max at 240VAC cold start |
| Touch Leakage Current (max) | ≤100μA at 264VAC |

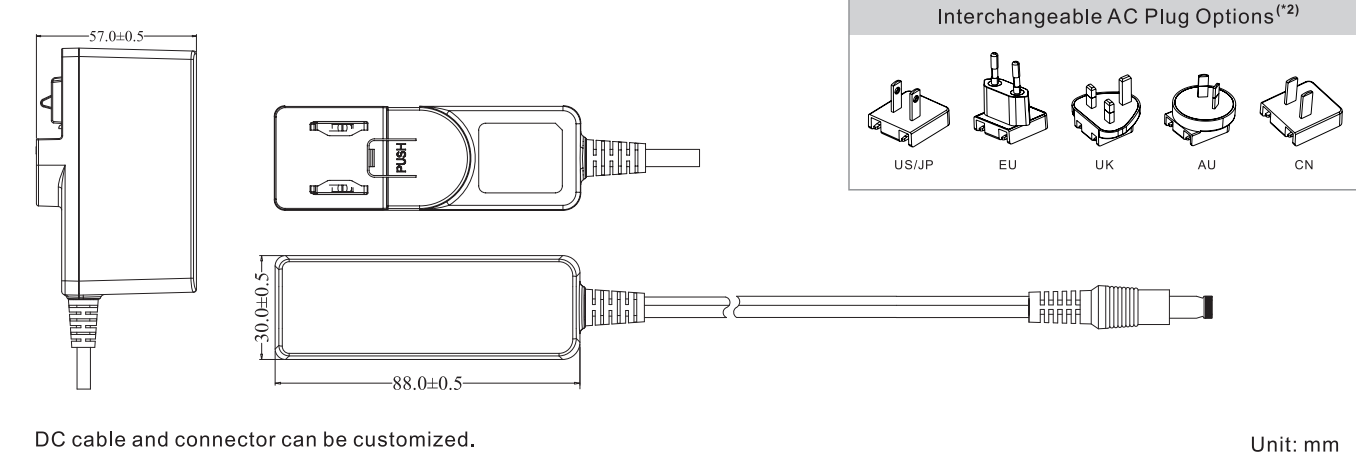

Dimensions(mm) | 88(L)x30(W)x57(H)mm |
| Weight | 170g |
| MTBF | ＞100,000hrs MIL-HDBK-217 at 25°C |
| Overload | 110-200% rated output power, auto recovery |
| Over Voltage | 120-150% rated output voltage input to reset |
| Short Circuit | Trip and restart (hiccup mode) |
| Safety Agency / Mark | Medical | ITE |
| CB | IEC60601-1 | IEC60950-1 IEC62368-1 |
| UL | ANSI/AAMI ES60601-1 | UL60950-1 UL62368-1 |
| CAN/CSA C22.2 NO. 60601-1 | CAN/CSA C22.2 NO. 60950-1 | |
| TUV Rheinland/Mark | EN60601-1 | - |
| TUV Rheinland/GS | - | EN60950-1 EN62368-1 |
| RCM | - | AS/NZS 60950.1 |
| CE | - | EN62368 |
| CCC | - | GB4943.1 |
| PSE | - | J60950 J62368 |
| KC | - | K60950-1 |
| FCC | - | FCC PART 15 |
| Emissons | Medical | ITE |
| Conduction | IEC/EN 60601-1-2,CISPR 11 | EN55032,CISPR 32 |
| Radiation | IEC/EN 60601-1-2,CISPR 11 | EN55032, CISPR 32 |
| Harmonic Currents | EN61000-3-2, Class A | EN61000-3-2, Class A |
| Voltage Flicker | EN61000-3-3 | EN61000-3-3 |
| Immunity | IEC/EN 60601-1-2 | EN55024, CISPR 24 |
| ESD | IEC61000-4-2 | ±15kV air,±8KV contact |
| Radiated Immunity | IEC61000-4-3 | 10V/m ,3V/m 80MHz - 2700MHz |
| EFT/Burst | IEC61000-4-4 | ±2KV on AC port, ±1KV on signal ports |
| Surge | IEC61000-4-5 | ±1KV line to line (diff mode) |
| Conducted Immunity | IEC61000-4-6 | 3Vrms, 6Vrms (0.15MHz-80MHz) |
| Magnetic Field | IEC61000-4-8 | 30 A/m |
Dips & Interruptions | IEC61000-4-11 | 0%, 70%, 0% of UT |
| Dielectric Withstand Voltage | 5,656VDC input to output |
| Insulation Resistance | 10M Ohms, 500VDC input to output |
