• Meets medical & I.T.E. safety
• 2 MOPP input to output isolation
• Touch current ≤ 100µA
• Energy efficiency level VI
• ≤ 0.075W standby power
• 9.0V - 36V outputs, up to 36W
• 5,000m operating altitude
• Interchangeable AC plugs
| Model No. | Voltage (V) | Current (A) | Rated Power | Ripple & Noise (max) (*2) | Voltage tolerance | Line& Load Regulation | Efficiency (Average) Min | Start Up delay |
| UES36-XXXYYYSPA | 9.0-10.0 | 0.01-4.00 | 36.0W | 400mVpk-pk | ±5% | Line:±1% Load: ±5% | 88.30% | ≤3s |
| 10.1-11.0 | 0.01-3.56 | 36.0W | 400mVpk-pk | ±5% | 88.30% | ≤3s | ||
| 11.1-12.0 | 0.01-3.24 | 36.0W | 400mVpk-pk | ±5% | 88.30% | ≤3s | ||
| 12.1-13.0 | 0.01-2.97 | 36.0W | 400mVpk-pk | ±5% | 88.30% | ≤3s | ||
| 13.1-14.0 | 0.01-2.74 | 36.0W | 400mVpk-pk | ±5% | 88.30% | ≤3s | ||
| 14.1-15.0 | 0.01-2.55 | 36.0W | 400mVpk-pk | ±5% | 88.30% | ≤3s | ||
| 15.1-16.0 | 0.01-2.38 | 36.0W | 400mVpk-pk | ±5% | 88.30% | ≤3s | ||
| 16.1-17.0 | 0.01-2.23 | 36.0W | 180mVpk-pk | ±5% | 88.30% | ≤3s | ||
| 17.1-18.0 | 0.01-2.10 | 36.0W | 180mVpk-pk | ±5% | 88.30% | ≤3s | ||
| 18.1-19.0 | 0.01-1.98 | 36.0W | 180mVpk-pk | ±5% | 88.30% | ≤3s | ||
| 19.1-20.0 | 0.01-1.88 | 36.0W | 180mVpk-pk | ±5% | 88.30% | ≤3s | ||
| 20.1-21.0 | 0.01-1.79 | 36.0W | 180mVpk-pk | ±5% | 88.30% | ≤3s | ||
| 21.1-22.0 | 0.01-1.70 | 36.0W | 180mVpk-pk | ±5% | 88.30% | ≤3s | ||
| 22.1-23.0 | 0.01-1.62 | 36.0W | 180mVpk-pk | ±5% | 88.30% | ≤3s | ||
| 23.1-24.0 | 0.01-1.55 | 36.0W | 180mVpk-pk | ±5% | 88.30% | ≤3s | ||
| 24.1-25.0 | 0.01-1.49 | 36.0W | 180mVpk-pk | ±5% | 88.30% | ≤3s | ||
| 25.1-26.0 | 0.01-1.43 | 36.0W | 240mVpk-pk | ±5% | 88.30% | ≤3s | ||
| 26.1-27.0 | 0.01-1.37 | 36.0W | 240mVpk-pk | ±5% | 88.30% | ≤3s | ||
| 27.1-28.0 | 0.01-1.32 | 36.0W | 240mVpk-pk | ±5% | 88.30% | ≤3s | ||
| 28.1-29.0 | 0.01-1.28 | 36.0W | 240mVpk-pk | ±5% | 88.30% | ≤3s | ||
| 29.1-30.0 | 0.01-1.23 | 36.0W | 240mVpk-pk | ±5% | 88.30% | ≤3s | ||
| 30.1-31.0 | 0.01-1.19 | 36.0W | 240mVpk-pk | ±5% | 88.30% | ≤3s | ||
| 31.1-32.0 | 0.01-1.15 | 36.0W | 240mVpk-pk | ±5% | 88.30% | ≤3s | ||
| 32.1-33.0 | 0.01-1.12 | 36.0W | 240mVpk-pk | ±5% | 88.30% | ≤3s | ||
| 33.1-34.0 | 0.01-1.08 | 36.0W | 240mVpk-pk | ±5% | 88.30% | ≤3s | ||
| 34.1-35.0 | 0.01-1.05 | 36.0W | 240mVpk-pk | ±5% | 88.30% | ≤3s | ||
| 35.1-36.0 | 0.01-1.02 | 36.0W | 240mVpk-pk | ±5% | 88.30% | ≤3s |
Notes
(*1, 2, 3, 4) Other options are available, please contact our sales representative for details.
Input Voltage Range | 90-264VAC |
| Frequency Range | 47-63Hz |
| Input Current | 0.5A at 90VAC |
| Inrush Current | 70A max at 240VAC cold start |
| Touch Leakage Current (max) | ≤100μA at 264VAC |

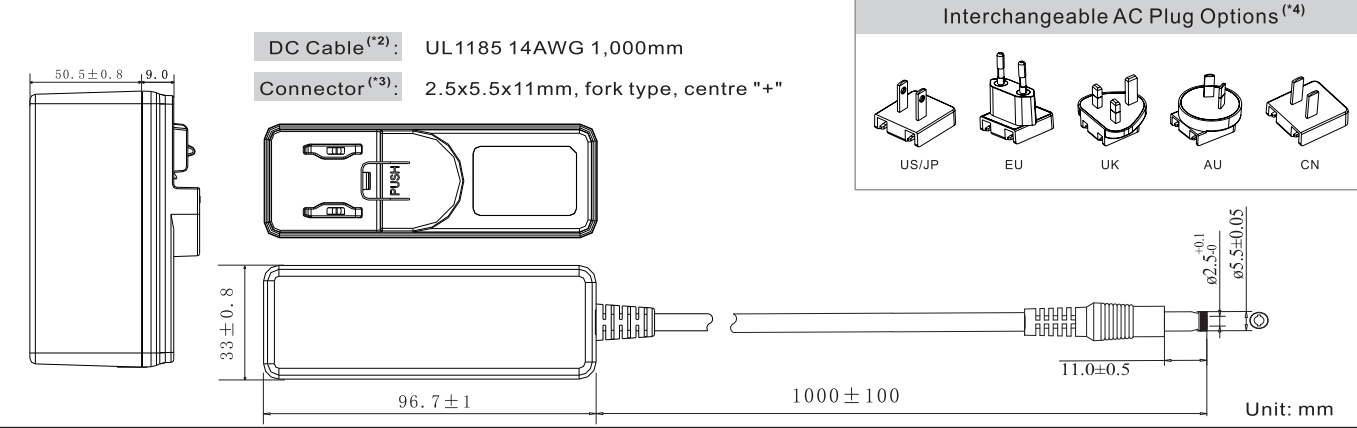

Dimensions(mm) | 96.7(L)x33(W)x50.5(H) |
| Weight | 230g |
| MTBF | ＞100,000hrs MIL-HKBK-217 at 25°C |
| Overload | 110-200% rated output power, auto recovery |
| Over Voltage | 120-150% rated output voltage input to reset |
| Short Circuit | Trip and restart (hiccup mode) |
| Safety Agency / Mark | Medical | ITE |
| CB | IEC60601-1 | IEC60950-1 IEC62368-1 |
| UL | ANSI/AAMI ES60601-1 CAN/CSA C22.2 NO.60601-1 | UL60950-1 UL62368-1 CAN/CSA C22.2 NO.60950-1 |
| TUV Rheinland/Mark | EN60601-1 | - |
| TUV Rheinland/GS | - | EN60950-1 EN62368-1 |
| RCM | - | AS/NZS 60950.1 |
| PSE | - | J60950-1 |
| CCC | - | GB4943.1 |
| CE | - | EN62368 |
| FCC | - | FCC PART 15 |
| KC | - | K60950 |
| Emissons | Medical | ITE |
| Conduction | IEC/EN 60601-1-2,CISPR 11 | EN55032,CISPR 32 |
| Radiation | IEC/EN 60601-1-2,CISPR 11 | EN55032, CISPR 32 |
| Harmonic Currents | EN61000-3-2, Class A | EN61000-3-2, Class A |
| Voltage Flicker | EN61000-3-3 | EN61000-3-3 |
| Immunity | IEC/EN 60601-1-2 | EN55024, CISPR 24 |
| ESD | IEC61000-4-2 | ±15KV air,±8KV contact |
| Radiated Immunity | IEC61000-4-3 | 10V/m ,3V/m 80MHz - 2.7GMHz |
| EFT/Burst | IEC61000-4-4 | ±2KV on AC port, ±1KV on signal ports |
| Surge | IEC61000-4-5 | ±1KV line to line (diff mode) |
| Conducted Immunity | IEC61000-4-6 | 3Vrms, 6Vrms (0.15MHz-80MHz) |
| Magnetic Field | IEC61000-4-8 | 30 A/m |
Dips & Interruptions | IEC61000-4-11 | 0%, 70%, 0% of UT |
| Dielectric Withstand Voltage | 5,656VDC input to output |
| Insulation Resistance | 10M Ohms, 500VDC input to output |
