• Meets medical & I.T.E. safety
• 2 MOPP input to output isolation
• Touch current ≤ 100µA
• Energy efficiency level VI
• ≤ 0.075W standby power
• 12V output, up to 24W
• Up to 5,000m operating altitude
| Model Number | Voltage (V) | Current (A) | Rated Power | Ripple & Noise (max) | Voltage Tolerance | Line & Load Regulation | Efficiency (Average) | Start Up Delay |
| UES24DZ-120YYYSPA | 12.0 | 0.01-2.00A | 24.00W | 150mVpk-pk | ±5% | Line: ±1% Load: ±5% | 86.8% | ≤3s |
AC Inlet Options
Notes
(*1, 2) Other options are available, please contact our sales representative for details.
Input Voltage Range | 80-264VAC |
| Frequency Range | 47-63Hz |
| Input Current | 0.8A at 80VAC |
| Touch Leakage Current (max) | ≤100μA at 264VAC |

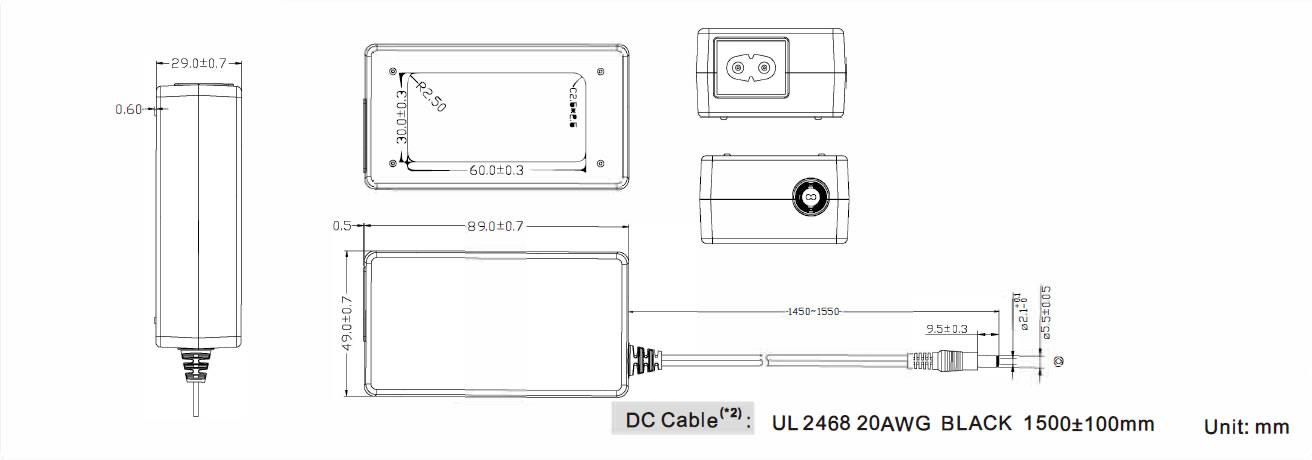

Dimensions(mm) | 89.0(L)x49.0(W)x29.0(H)mm |
| Weight | 132g |
| MTBF | ＞50,000hrs MIL-HKBK-217 at 25°C |
| Overload | 110-200% rated output power, auto recovery |
| Over Voltage | 110-150% rated output voltage input to reset |
| Short Circuit | Trip and restart (hiccup mode) |
| Safety Agency / Mark | Medical | ITE |
| CCC | - | GB4943.1 |
| CB | IEC60601-1-11 | IEC62368-1 |
| TUV Rheinland/Mark | EN60601-1 | - |
| UL | ANSI/AAMI ES 60601-1 | - |
| CAN/CSAC22.2N0.60601-1 |
| Emissons | Medical | ITE |
| Conduction | IEC/EN 60601-1-2,CISPR 11 | EN55032,CISPR 32 |
| Radiation | IEC/EN 60601-1-2,CISPR 11 | EN55032, CISPR 32 |
| Harmonic Currents | EN61000-3-2, Class A | EN61000-3-2, Class A |
| Voltage Flicker | EN61000-3-3 | EN61000-3-3 |
| Immunity | IEC/EN 60601-1-2 | EN55035, CISPR 35 |
| ESD | IEC61000-4-2 | ±15KV air,±8KV contact |
| Radiated Immunity | IEC61000-4-3 | 10V/m ,3V/m 80MHz - 2.7GMHz |
| EFT/Burst | IEC61000-4-4 | ±2KV on AC port, ±1KV on signal ports |
| Surge | IEC61000-4-5 | ±2KV line to line，±4KV line to GND |
| Conducted Immunity | IEC61000-4-6 | 3Vrms, 6Vrms (0.15MHz-80MHz) |
| Magnetic Field | IEC61000-4-8 | 30 A/m |
Dips & Interruptions | IEC61000-4-11 | 0%, 70%, 0% of UT |
| Dielectric Withstand Voltage | 5,656VDC input to output |
| Insulation Resistance | 10M Ohms, 500VDC input to output |
