• Meets medical & I.T.E. safety
• 2 MOPP input to output isolation
• Touch current ≤ 100µA
• Earth Leakage current ≤ 5mA
• Energy efficiency level VI
• ≤ 0.15W standby power
• 9V - 54V outputs, up to 65W
• Up to 5,000m operating altitude
• 4 types of AC inlet
| Model No. | Voltage (V) | Current (A) | Rated Power | Ripple & Noise (Max) | Voltage tolerance | Line & Load Regulation | Efficiency (Average) Min | Start Up delay |
| UES65-XXXYYYSPAZ UES65-XXXYYYSPA2-OP | 9.0-12.0 | 0.01-5.42 | 65.04W | 200mVpk-pk | ±5% | Line:±1% Load: ±5% | 89.00% | ≤3s |
| 12.1-13.0 | 0.01-5.00 | 65.00W | 200mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 13.1-14.0 | 0.01-4.64 | 64.96W | 200mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 14.1-15.0 | 0.01-4.30 | 64.50W | 200mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 15.1-16.0 | 0.01-4.06 | 64.96W | 200mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 16.1-17.0 | 0.01-3.82 | 64.94W | 200mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 17.1-18.0 | 0.01-3.60 | 64.80W | 200mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 18.1-19.0 | 0.01-3.40 | 64.60W | 200mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 19.1-20.0 | 0.01-3.24 | 64.80W | 200mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 20.1-21.0 | 0.01-3.09 | 64.89W | 200mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 21.1-22.0 | 0.01-2.95 | 64.90W | 200mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 22.1-23.0 | 0.01-2.82 | 64.86W | 200mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 23.1-24.0 | 0.01-2.70 | 64.80W | 240mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 48.0 | 0.01-1.35 | 64.80W | 300mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 48.1-54.0 | 0.01-1.20 | 64.80W | 300mVpk-pk | ±5% | 89.00% | ≤3s |
Input Voltage Range | 90-264VAC(Class I); 80-264VAC(Class II) |
| Frequency Range | 47-63Hz |
| Input Current | 2.0A at 80/90VAC |
| Inrush Current | 120A max at 240VAC cold start |
| Touch Leakage Current (max) | ≤ 100µA at 264VAC |

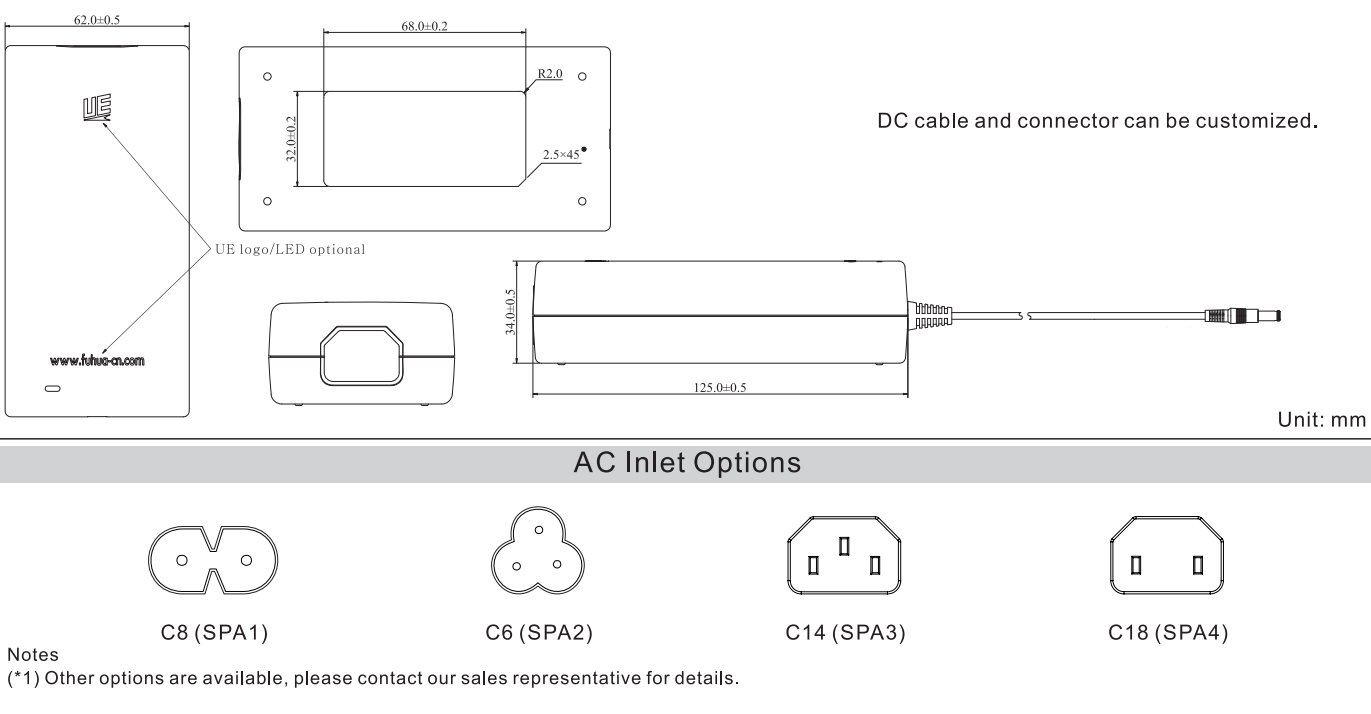

Dimensions(mm) | 125(L)x62(W)x34(H)mm |
| Weight | 315g |
| MTBF | ＞100,000hrs MIL-HDBK-217 at 25°C |
| Overload | 120-200% rated output power, auto recovery |
| Over Voltage | 120-200% rated output voltage input to reset |
| Short Circuit | Trip and restart (hiccup mode) |
| Safety Agency / Mark | Medical | ITE |
| CB | IEC60601-1 IEC60601-1-11 | IEC60950-1 IEC62368-1 |
| UL | ANSI/AAMI ES60601-1 | UL60950-1 UL62368-1 |
| CAN/CSA C22.2 NO. 60601-1 | ||
| TUV Rheinland/Mark | EN60601-1 EN60601-1-11 | - |
| TUV Rheinland/GS | - | EN60950-1 EN62368-1 |
| CCC | - | GB4943.1 |
| CE | - | EN62368 |
| FCC | - | FCC PART 15 |
| PSE | - | J60950 |
| BIS | - | IEC60950-1 |
| BSMI | - | CNS14336-1 |
| EAC | - | IEC62368-1 |
| NOM | - | NOM-001-SCFI-2018 |
| PSB | - | IEC62368-1 |
| IRAM | - | IEC62368-1 |
| RCM | - | AS/NZS62368-1 |
| ST | - | IEC62368-1 |
| Emissons | Medical | ITE |
| Conduction | IEC/EN 60601-1-2,CISPR 11 | EN55032, CISPR 32 |
| Radiation | IEC/EN 60601-1-2,CISPR 11 | EN55032,CISPR 32 |
| Harmonic Currents | EN61000-3-2, Class A | EN61000-3-2, Class A |
| Voltage Flicker | EN61000-3-3 | EN61000-3-3 |
| Immunity | IEC/EN 60601-1-2 | EN55024, CISPR 24 |
| ESD | IEC61000-4-2 | ±15KV air,±8KV contact |
| Radiated Immunity | IEC61000-4-3 | 10V/m ,3V/m 80MHz - 2.7GMHz |
| EFT/Burst | IEC61000-4-4 | ±2KV on AC port, ±1KV on signal ports |
| Surge | IEC61000-4-5 | ±2KV line to line (different mode) |
| Conducted Immunity | IEC61000-4-6 | 3Vrms, 6Vrms (0.15MHz-80MHz) |
| Magnetic Field | IEC61000-4-8 | 30 A/m |
Dips & Interruptions | IEC61000-4-11 | 0%, 70%, 0% of UT |
| Dielectric Withstand Voltage | 2,121VDC for Class Ⅰ / 5,656VDC for Class Ⅱ input to output |
| Insulation Resistance | 10M Ohms, 500VDC input to output |
