• Meets medical & I.T.E. safety
• 2 MOPP input to output isolation
• Touch current ≤ 100µA
• Earth Leakage current ≤ 5mA
• PF>0.95@230VAC full load
• 11V - 54V outputs, up to 180W
• Up to 5,000m operating altitude
• Energy Efficiercy Level VI (≤ 0.21 W standby power when output voltage > 19V)
• CoC V5 Tier2 (≤ 0.15W standby power when output voltage ≤ 19V)
| Model Number | Voltage (V) | Current (A) | Rated Power | Ripple & Noise (max) | Voltage Tolerance | Line & Load Regulation | Efficiency | Start Up Delay |
| UES180D"Z"-XXXYYYSPA | 11.0-12.0 | 0.01-12.5 | 150W | 150mVpk-pk | ±5% | Line: ±1 %Load: ±5% | 92.00% | ≤3s |
| 12.1-13.0 | 0.01-11.5 | 150W | 150mVpk-pk | ±5% | 92.00% | ≤3s | ||
| 13.1-14.0 | 0.01-10.7 | 150W | 150mVpk-pk | ±5% | 92.00% | ≤3s | ||
| 14.1-15.0 | 0.01-10.0 | 150W | 150mVpk-pk | ±5% | 92.00% | ≤3s | ||
| 18.1-19.0 | 0.01-9.47 | 180W | 190mVpk-pk | ±5% | 93.00% | ≤3s | ||
| 19.1-20.0 | 0.01-9.00 | 180W | 200mVpk-pk | ±5% | 93.00% | ≤3s | ||
| 20.1-21.0 | 0.01-8.57 | 180W | 210mVpk-pk | ±5% | 93.00% | ≤3s | ||
| 21.1-22.0 | 0.01-8.18 | 180W | 220mVpk-pk | ±5% | 93.00% | ≤3s | ||
| 22.1-23.0 | 0.01-7.82 | 180W | 230mVpk-pk | ±5% | 93.00% | ≤3s | ||
| 23.1-24.0 | 0.01-7.50 | 180W | 240mVpk-pk | ±5% | 93.00% | ≤3s | ||
| 24.1-25.0 | 0.01-7.20 | 180W | 250mVpk-pk | ±5% | 93.00% | ≤3s | ||
| 25.1-26.0 | 0.01-6.92 | 180W | 260mVpk-pk | ±5% | 93.00% | ≤3s | ||
| 35.1-36.0 | 0.01-5.00 | 180W | 300mVpk-pk | ±5% | 94.00% | ≤3s | ||
| 36.1-37.0 | 0.01-4.86 | 180W | 300mVpk-pk | ±5% | 94.00% | ≤3s | ||
| 37.1-38.0 | 0.01-4.73 | 180W | 300mVpk-pk | ±5% | 94.00% | ≤3s | ||
| 38.1-39.0 | 0.01-4.61 | 180W | 300mVpk-pk | ±5% | 94.00% | ≤3s | ||
| 39.1-40.0 | 0.01-4.50 | 180W | 300mVpk-pk | ±5% | 94.00% | ≤3s | ||
| 47.1-48.0 | 0.01-3.75 | 180W | 400mVpk-pk | ±5% | 94.00% | ≤3s | ||
| 48.1-49.0 | 0.01-3.67 | 180W | 400mVpk-pk | ±5% | 94.00% | ≤3s | ||
| 49.1-50.0 | 0.01-3.60 | 180W | 400mVpk-pk | ±5% | 94.00% | ≤3s | ||
| 50.1-51.0 | 0.01-3.52 | 180W | 400mVpk-pk | ±5% | 94.00% | ≤3s | ||
| 51.1-52.0 | 0.01-3.46 | 180W | 400mVpk-pk | ±5% | 94.00% | ≤3s | ||
| 52.1-53.0 | 0.01-3.39 | 180W | 400mVpk-pk | ±5% | 94.00% | ≤3s | ||
| 53.1-54.0 | 0.01-3.33 | 180W | 400mVpk-pk | ±5% | 94.00% | ≤3s | ||
| 54.1-55.0 | 0.01-3.27 | 180W | 400mVpk-pk | ±5% | 94.00% | ≤3s | ||
| 55.1-56.0 | 0.01-3.21 | 180W | 400mVpk-pk | ±5% | 94.00% | ≤3s |
Model encoding: 「eplace "Z" with "1" fo「 CB (Class 11), "2" for C6 (Class l)AC inlets
Notes
(*1) Other options are available, please contact our sales representative for details.
Input Voltage Range | 90-264VAC(Class I); 80-264VAC(Class II) |
| Frequency Range | 47-63Hz |
| Input Current | 3.0A at 80/90VAC |
| Inrush Current | 120A max at 240VAC cold start |
| Touch Leakage Current | ＜100μA at 264VAC |

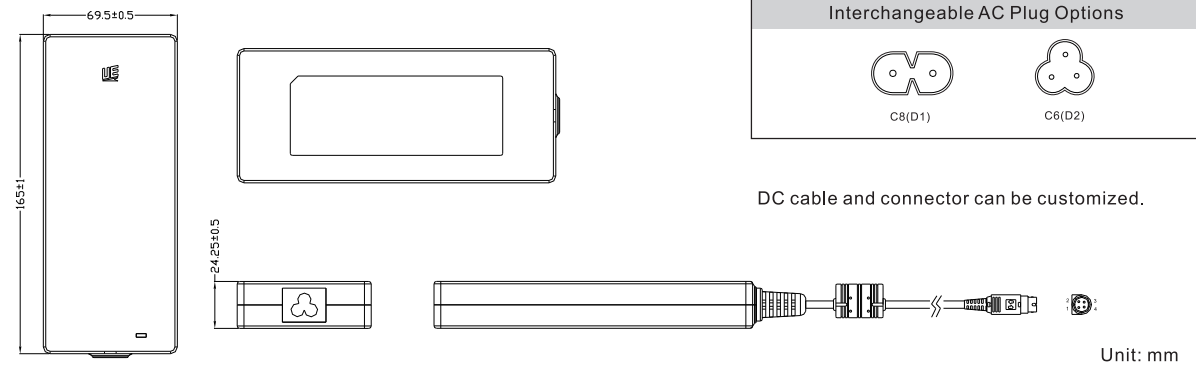

Dimensions(mm) | 165(L)x69.5(W)x24.25(H)mm |
| Weight | 800g |
| MTBF | ＞100,000hrs MIL-HKBK-217 at 25°C |
| Overload | 120-170% rated output power, auto recovery |
| Over Voltage | 120-150% rated output voltage input to reset |
| Short Circuit | Trip and restart (hiccup mode) |
| Safety Agency / Mark | Medical | ITE |
| CB | IEC60601-1 / IEC60601-1-11 | IEC62368-1 |
| UL | ANSI/AAMI ES60601-1 /60601-1-11 | UL62368-1 |
| CAN/CSA-C22.2 NO. 60601-1 | ||
| TUV SUD/Mark | EN60601-1 EN60601-1-11 | - |
| TUV SUD/GS | - | EN62368-1 |
| CE | - | EN62368-1 |
| CCC | - | GB4943.1 |
| FCC | - | FCC PART 15 |
| Emissons | Medical | ITE |
| Conduction | IEC/EN 60601-1-2,CISPR 11 | EN55032, CISPR 32 |
| Radiation | IEC/EN 60601-1-2,CISPR 11 | EN55032, CISPR 32 |
| Harmonic Currents | IEC/EN61000-3-2, Class A | EN61000-3-2, Class C |
| Voltage Flicker | EN61000-3-3 | EN61000-3-3 |
| Immunity | IEC/EN 60601-1-2 | EN55035, CISPR 35 |
| ESD | IEC61000-4-2 | ±15KV air,±8KV contact |
| Radiated Immunity | IEC61000-4-3 | 10V/m ,3V/m 80MHz - 2.7GMHz |
| EFT/Burst | IEC61000-4-4 | ±2KV on AC port, ±1KV on signal ports |
| Surge | IEC61000-4-5 | ±2KV line to line (different mode) |
| Conducted Immunity | IEC61000-4-6 | 3Vrms, 6Vrms (0.15MHz-80MHz) |
| Magnetic Field | IEC61000-4-8 | 30 A/m |
Dips & Interruptions | IEC61000-4-11 | 0%, 70%, 0% of UT |
| Dielectric Withstand Voltage | 5,656VDC input to output |
| Insulation Resistance | 10M Ohms, 500VDC input to output |
