Meets medical & I.T.E. safety
2 MOPP input to output isolation
Touch current ≤ 100 μA
Energy efficiency level VI
≤0.075W standby power
Up to 5000m operating altitude
| Model Number | Voltage | Current | Rated Power | Ripple&Noise | Voltage Tolerance | Line&Load Regulation | Efficiency（Average） | Start Up Delay |
UES10LZ1-050200SPA UES10LZ2-050200SPA | 5.0 | 0.01-2.00 | 10.00W | 200mVpk-pk | ±5% | Line：±5% Load：±5% | 79% | ≤3s |
Notes
(*1) Other options are available, please contact our sales representative for details.
| Input Voltage Range | 90-264VAC |
| Frequency Range | 47-63Hz |
| Input Current | 0.5A at 100VAC |
| Touch Leakage Current(max) | ≤100μA at 264VAC |

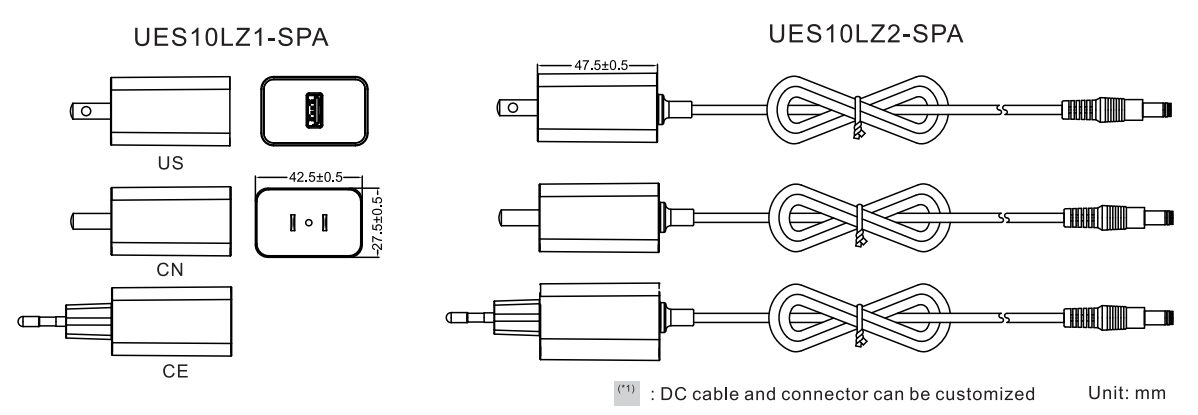

| Dimensions | 47.5(L)*42.5(W)*27.5(H)mm |
| Weight | 50g |
| MTBF | ＞100,000hrs MIL-HDBK-217 at 25℃ |
| Overload | 200%max, auto recovery |
| Over Voltage | 150%max, auto recovery |
| Short Circuit | Auto recovery |
| Safety Angency/Mark | Medical(meet) | ITE(meet) |
| CB | IEC60601-1 | |
| UL | ANSI/AAMI ES60601-1 CAN/CSA C22.2 NO.60601-1 | - |
| TUV/MARK | EN60601-1 | |
| CCC | - | GB4943.1 |
| Emission | Medical | ITE |
| Conduction | IEC/EN60601-1-2, CISPR 11 | EN55032, CISPR 32 |
| Radiation | IEC/EN60601-1-2, CISPR 11 | EN55032, CISPR 32 |
| Harmonic Currents | EN61000-3-2, Class A | EN6100-3-2, Class A |
| Voltage Flicker | EN61000-3-3 | EN61000-3-3 |
| Immunity | IEC/EN60601-1-2 | EN55035, CISPR 35 |
| ESD | IEC6100-4-2 | ±15KV air， ±8KV contact |
| Radiated Immunity | IEC6100-4-3 | 10V/m, 3V/m 80MHz-2.7GMHz |
| EFT/Burst | IEC6100-4-4 | ±2KV on AC port， ±1KV on signal ports |
| Surge | IEC6100-4-5 | ±1KV line to line(different mode) |
| Conducted Immunity | IEC6100-4-6 | 3Vrms, 6Vrms(0.15MHz-80MHz) |
| Magnetic Field | IEC6100-4-8 | 30A/m |
| Dips&Interruptions | IEC6100-4-11 | 0%, 70%, 0% of UT |
| Dielectric Withstand Voltage | 5656VDC input to output |
| Insulation Resistance | 10M Ohms, 500VDC input to output |
