· Meets medical & I.T.E. safety
· 2 MOPP input to output isolation
· Touch current ≤ 10 μA
· Energy efficiency level VI
· ≤0.075W standby power
· 4.2V-12V output, up to 6W
· Up to 5000m operating altitude
· Interchangeable AC plugs
| Model Number | Voltage(V) | Current(A) | Rated Power | Ripple & Noise(max) | Voltage Tolerance | Line&Load Regulation | Efficiency(Average) | Start Up Delay |
| UES06WNCP1-XXXYYYSPA | 4.2 | 0.01-1.20 | 5.04W | 200mVpk-pk | ±5% | Line：±1% Load：±5% | 73.83% | ≤3s |
| 5.0-6.0 | 0.01-1.00 | 6.00W | 150mVpk-pk | ±5% | 73.77% | ≤3s | ||
| 6.1-7.0 | 0.01-0.86 | 6.00W | 150mVpk-pk | ±5% | 78.16% | ≤3s | ||
| 7.1-8.0 | 0.01-0.75 | 6.00W | 200mVpk-pk | ±5% | 78.26% | ≤3s | ||
| 8.1-8.9 | 0.01-0.67 | 6.00W | 200mVpk-pk | ±5% | 78.38% | ≤3s | ||
| 9.0-10.0 | 0.01-0.60 | 6.00W | 200mVpk-pk | ±5% | 78.35% | ≤3s | ||
| 10.1-11.0 | 0.01-0.54 | 6.00W | 200mVpk-pk | ±5% | 78.42% | ≤3s | ||
| 11.1-12.0 | 0.01-0.50 | 6.00W | 200mVpk-pk | ±5% | 78.53% | ≤3s |
Notes
（*1,2）Other options are available, please contact our sales representative for details.
| Input Voltage Range | 80-264VAC |
| Frequency Range | 47-63Hz |
| Input Current | 0.2A at 90VAC |
| Inrush Current | 30A max at 240VAC cold start |
| Touch Leakage Current(max) | 10μA at 264 VAC |

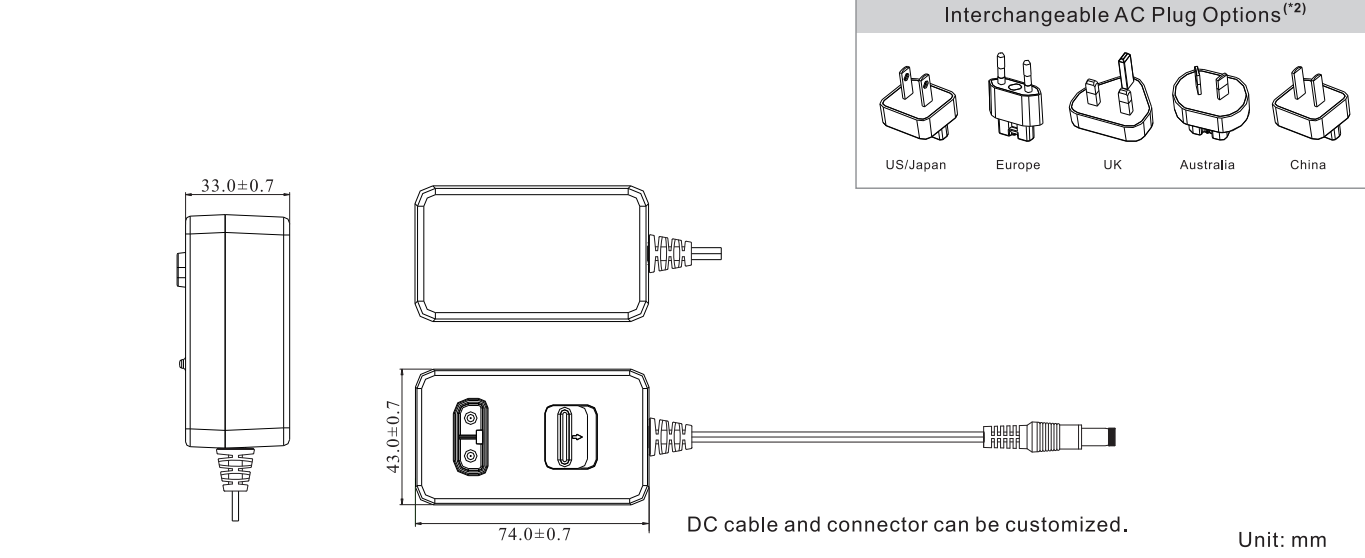

| Dimensions | 74.0(L)*43.0(W)*33.0(H)mm |
| Weight | 85g |
| MTBF | ＞100,000hrs MIL-HDBK-217 at 25℃ |
| Overload | 120-150% rated output power, auto recovery |
| Over Voltage | 120-150% rated output voltage input to reset |
| Short Circuit | Trip and restart(hiccup mode) |
| Safety Agency /Mark | Medical | ITE |
| CB | IEC60601-1/IEC60601-1-11 | IEC62368-1 |
| UL | ANSI/AAMI ES 60601-1/60601-1-11 CAN/CSA C22.2 NO. 60601-1 | UL62368-1 - |
| TUV-Mark | EN60601-1/60601-1-11 | - |
| TUV Rheinland-GS | - | EN62368-1 |
| RCM | - | AS/NZS 62368 |
| CCC | - | GB4943.1 |
| PSE | - | J62368 |
| KC | - | K60950-1 |
| CE | - | EN62368 |
| FCC | - | FCC PART 15 |
| Emission | Medical | ITE |
| Conduction | IEC/EN60601-1-2, CISPR 11 | EN55032, CISPR 32 |
| Radiation | IEC/EN60601-1-2, CISPR 11 | EN55032, CISPR 32 |
| Harmonic Currents | EN61000-3-2, Class A | EN61000-3-2, Class A |
Voltage Flicker | EN61000-3-3 | EN61000-3-3 |
| Immunity | IEC/EN60601-1-2 | EN55024, CISPR 24 |
| ESD | IEC61000-4-2 | ±15KV air，±8KV contact |
| Radiated Immunity | IEC61000-4-3 | 10V/m，3V/m 80MHz-2700MHz |
| EFT/Burst | IEC61000-4-4 | ±2KV on AC port， ±1KV on signal ports |
| Surge | IEC61000-4-5 | ±1KV line to line（different mode） |
| Conducted Immunity | IEC61000-4-6 | 3Vrms， 6Vrms（0.15MHz-80MHz） |
| Magnetic Field | IEC61000-4-8 | 30A/m |
| Dips&Interruptions | IEC61000-4-11 | 0%，70%，0% of UT |
Dielectric Withstand Voltage | 5656VDC input to output |
| Insulation Resistance | 10M Ohms, 500VDC input to output |
