•Meets medical & I.T.E. safety
•2 MOPP input to output isolation
•Touch current ≤ 100μA
•Earth Leakage current ≤ 5mA
•Energy efficiency level VI
•PF>0.9@230VAC full load
•≤0.15W standby power
•12V-52V outputs, up to 90W
•Up to 5,000m operating altitude

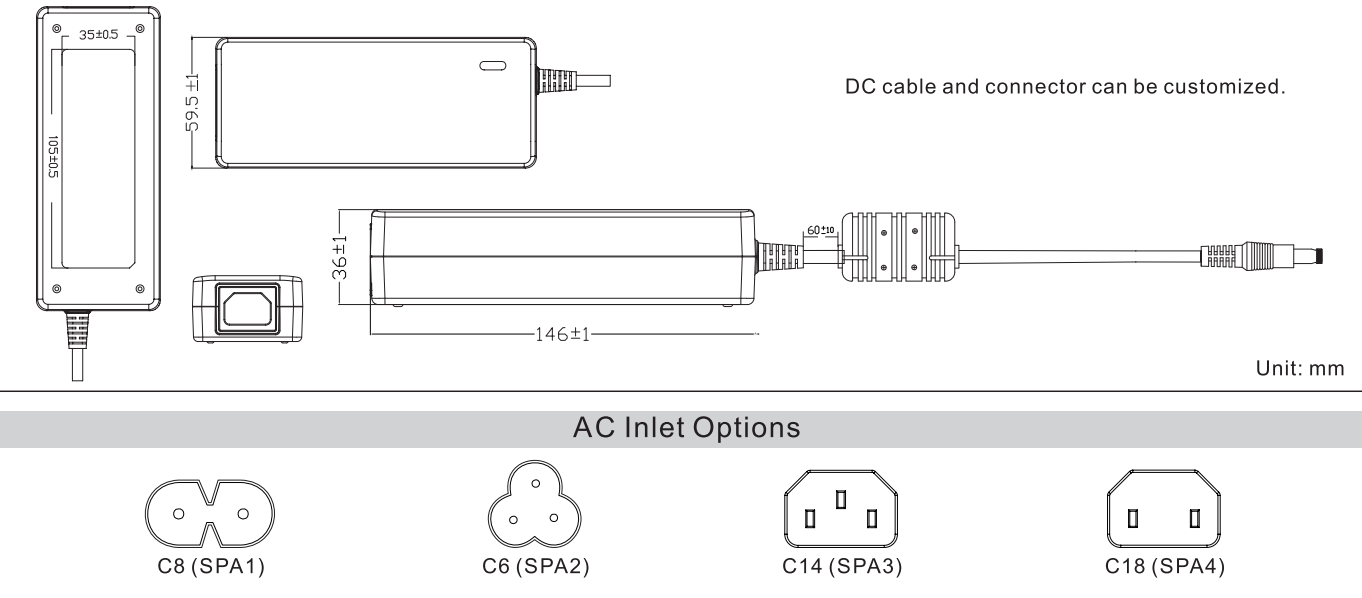

•4 types of AC inlet
| Model Number | Voltage (V) | Current (A) | Rated Power | Ripple & Noise (Max) | Voltage Tolerance | Line& Load Regulation | Efficiency (Average) | Start Up delay |
| UES90-XXXYYYSPAZ UES90-XXXYYYSPA -OP | 12.0 | 0.01-7.00 | 84.00W | 150mVpk-pk | ±5% | Line: ±1% Load: ±5% | 88.60% | ≤3s |
12.1-15.0 | 0.01-5..67 | 85.05W | 180mVpk-pk | ±5% | 88.60% | ≤3s | ||
15.1-17.0 | 0.01-5.00 | 85.00W | 200mVpk-pk | ±5% | 88.60% | ≤3s | ||
17.1-19.0 | 0.01-4.76 | 90.44W |
| ±5% | 88.60% | ≤3s | ||
19.1-22.0 | 0.01-4.10 | 90.20W | 200mVpk-pk | ±5% | 88.60% | ≤3s | ||
22.1-24.0 | 0.01-3.75 | 90.00W | 200mVpk-pk | ±5% | 88.60% | ≤3s | ||
24.1-26.0 | 0.01-3.46 | 89.96W | 200mVpk-pk | ±5% | 88.60% | ≤3s | ||
26.1-30.0 | 0.01-3.00 | 90.00W | 200mVpk-pk | ±5% | 88.60% | ≤3s | ||
30.1-33.0 | 0.01-2.73 | 90.09W | 200mVpk-pk | +5% | 88.60% | ≤3s | ||
33.1-36.0 | 0.01-2.50 | 90.00W | 200mVpk-pk | ±5% | 88.60% | ≤3s | ||
36.1-39.0 | 0.01-2.31 | 90.90W | 240mVpk-pk | ±5% | 88.60% | ≤3s | ||
39.1-43.0 | 0.01-2.10 | 90.30W |
| ±5% | 88.60% | ≤3s | ||
43.1-46.0 | 0.01-1.96 | 90.16W | 360mVpk-pk | ±5% | 88.60% | ≤3s | ||
46.1-48.0 | 0.01-1.88 | 90.24W | 480mVpk-pk | ±5% | 88.60% | ≤3s | ||
48.1-52.0 | 0.01-1.73 | 89.96W | 560mVpk-pk | ±5% | 88.60% | ≤3s |
Notes
(*1,2,3) Other options are available, please contact our sales representative for details.
Input Voltage Range | 90-264VAC |
| Frequency Range | 47-63Hz |
| Input Current | 1.5A at 90VAC |
| Inrush Current | 100A max at 240VAC cold start |
| Touch Leakage Current(Max) | ≤100μA at 264VAC |
Dimensions(mm) | 146(L)x59.5(W)x36(H)mm |
| Weight | 420g |
| MTBF | ＞50,000hrs MIL-HDBK-217 at 25°C |
| Overload | 130-200% rated output power, auto recovery |
| Over Voltage | 130-150% rated output voltage input to reset |
| Short Circuit | Trip and restart (hiccup mode) |
| Safety Agency / Mark | Medical | ITE |
CB | IEC60601-1 | IEC60950-1 IEC62368-1 |
UL | ANSI/AAMI ES60601-1 | UL60950-1 UL62368-1 |
TṻV Rheinland/Mark | EN60601-1 | - |
TṻV Rheinland/GS | - | EN62368-1 |
CE | - | EN62368 |
CCC | - | GB4943.1 |
FCC | - | FCC PART 15 |
PSE | - | J60950 |
| Emissons | Medical | ITE |
| Conduction | IEC/EN 60601-1-2,CISPR 11 | EN55032, CISPR 32 |
| Radiation | IEC/EN 60601-1-2,CISPR 11 | EN55032, CISPR 32 |
| Harmonic Currents | IEC/EN61000-3-2, Class A | EN61000-3-2, Class A |
| Voltage Flicker | EN61000-3-3 | EN61000-3-3 |
| Immunity | IEC/EN 60601-1-2 | EN55035, CISPR 35 |
| ESD | IEC61000-4-2 | ±15KV air,±8KV contact |
| Radiated Immunity | IEC61000-4-3 | 10V/m ,3V/m 80MHz - 2.7GMHz |
| EFT/Burst | IEC61000-4-4 | ±2KV on AC port, ±1KV on signal ports |
| Surge | IEC61000-4-5 | ±1KV line to line (different mode) |
| Conducted Immunity | IEC61000-4-6 | 3Vrms, 6Vrms (0.15MHz-80MHz) |
| Magnetic Field | IEC61000-4-8 | 30 A/m |
Dips & Interruptions | IEC61000-4-11 | 0%, 70%, 0% of UT |
| Dielectric Withstand Voltage | 5,656VDC input to output |
| Insulation Resistance | 10M Ohms, 500VDC input to output |
