• Medical & ITE safety meet
• 2 MOPP input to output isolation
• DOE Efficiency Level Vl
• Leakage current< 100µA
• ≤0.15W standby power
• Up to 5,000m operating altitude
| Model Number | Voltage (V) | Current (A) | Rated Power | Ripple & Noise (max) | Voltage tolerance | Line& Load Regulation | Efficiency (Average) | Start Up delay |
UES65-XXXYYYSPA5-0P | 5.0 | 0.01-10.00 | 50W | 120mVpk-pk | ±7% | Line:±1% Load:±5% | 89.0% | ≤3s |
| 5.1-6.0 | 0.01-8.50 | 51W | 120mVpk-pk | ±7% | 89.0% | ≤3s | ||
| 6.1-7.5 | 0.01-8.00 | 60W | 120mVpk-pk | ±7% | 89.0% | ≤3s | ||
| 7.6-8.0 | 0.01-7.50 | 60W | 120mVpk-pk | ±7% | 89.0% | ≤3s | ||
| 8.1-9.0 | 0.01-6.66 | 60W | 120mVpk-pk | ±5% | 89.0% | ≤3s | ||
| 9.1-10.0 | 0.01-6.00 | 60W | 120mVpk-pk | ±5% | 89.0% | ≤3s | ||
| 10.1-11.0 | 0.01-5.50 | 60W | 120mVpk-pk | ±5% | 89.0% | ≤3s | ||
| 11.1-12.0 | 0.01-5.42 | 65W | 120mVpk-pk | ±5% | 89.0% | ≤3s | ||
| 12.1-13.0 | 0.01-5.00 | 65W | 120mVpk-pk | ±5% | 89.0% | ≤3s | ||
| 13.1-14.0 | 0.01-4.64 | 65W | 120mVpk-pk | ±5% | 89.0% | ≤3s | ||
| 14.1-15.0 | 0.01-4.33 | 65W | 120mVpk-pk | ±5% | 89.0% | ≤3s | ||
| 15.1-16.0 | 0.01-4.06 | 65W | 200mVpk-pk | ±5% | 89.0% | ≤3s | ||
| 16.1-17.0 | 0.01-3.82 | 65W | 200mVpk-pk | ±5% | 89.0% | ≤3s | ||
| 17.1-18.0 | 0.01-3.61 | 65W | 200mVpk-pk | ±5% | 89.0% | ≤3s | ||
| 18.1-19.0 | 0.01-3.42 | 65W | 200mVpk-pk | ±5% | 89.0% | ≤3s | ||
| 19.1-20.0 | 0.01-3.25 | 65W | 200mVpk-pk | ±5% | 89.0% | ≤3s | ||
| 20.1-21.0 | 0.01-3.09 | 65W | 200mVpk-pk | ±5% | 89.0% | ≤3s | ||
| 21.1-22.0 | 0.01-2.95 | 65W | 200mVpk-pk | ±5% | 89.0% | ≤3s | ||
| 22.1-23.0 | 0.01-2.82 | 65W | 200mVpk-pk | ±5% | 89.0% | ≤3s | ||
| 23.1-24.0 | 0.01-2.70 | 65W | 200mVpk-pk | ±5% | 89.0% | ≤3s | ||
| 24.1-27.0 | 0.01-2.40 | 65W | 200mVpk-pk | ±5% | 89.0% | ≤3s | ||
| 27.1-30.0 | 0.01-2.16 | 65W | 300mVpk-pk | ±5% | 89.0% | ≤3s | ||
| 30.1-33.0 | 0.01-1.96 | 65W | 300mVpk-pk | ±5% | 89.0% | ≤3s | ||
| 33.1-36.0 | 0.01-1.80 | 65W | 300mVpk-pk | ±5% | 89.0% | ≤3s | ||
| 36.1-39.0 | 0.01-1.66 | 65W | 300mVpk-pk | ±5% | 89.0% | ≤3s | ||
| 39.1-42.0 | 0.01-1.54 | 65W | 300mVpk-pk | ±5% | 89.0% | ≤3s | ||
| 42.1-45.0 | 0.01-1.44 | 65W | 300mVpk-pk | ±5% | 89.0% | ≤3s | ||
| 45.1-48.0 | 0.01-1.35 | 65W | 300mVpk-pk | ±5% | 89.0% | ≤3s |
Notes
(*1) Other options are available, please contact our sales representative for details
(*2) Measured at output connector with 20MHz bandwidth and 0.1 uF ceramic in parallel with 1 OuF electrolytic capacitors
Input Voltage Range | 90-264VAC |
| Frequency Range | 47-63Hz |
| Input Current | 1.5A at 90VAC |
| Inrush Current | 100A max at 240VAC cold start |
| Touch Leakage Current | ≤100μA at 264VAC |

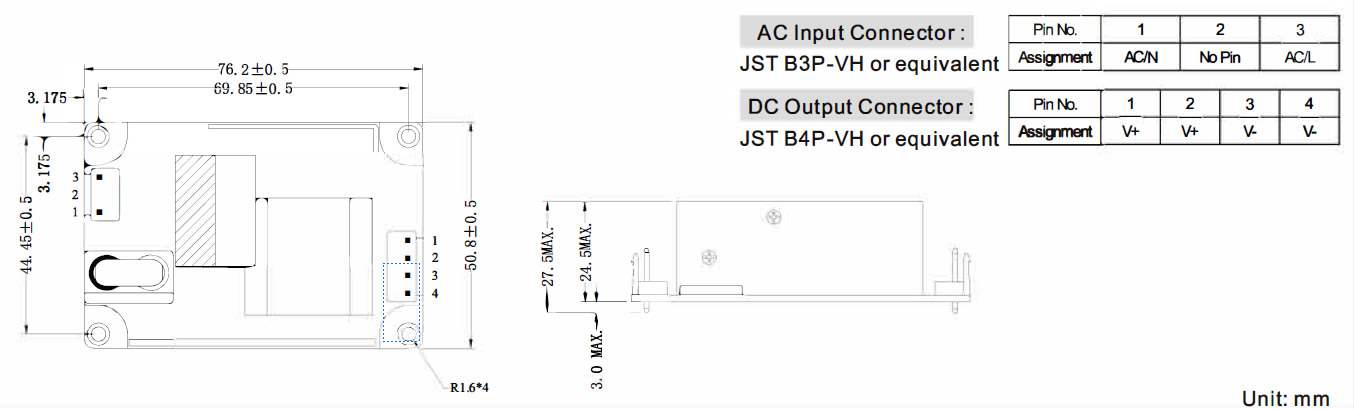

Dimensions(mm) | 76.2(L)x50.8(W)x27.5( H)mm |
| Weight | 110g |
| MTBF | ＞100,000hrs MIL-HDBK-217 at 25℃ |
| Isolation | 5,656VDC Input to Output |
| Overload | 120-170% rated output power, auto recovery |
| Over Voltage | 120-150% rated output voltage input to reset |
| Short Circuit | Trip and restart (hiccup mode) |
| Safety Agency / Mark | Medical | ITE |
| CB | IEC60601-1 | IEC 62368-1 |
| NRTL | ANSI/AAMI ES60601-1 | - |
| CAN/CSA C22.2 NO. 60601-1 | ||
| TUV-Mark | EN60601-1 | EN62368-1 |
| Emissons | Medical | ITE |
| Conducted | IEC/EN 60601-1-2,CISPR 11 | EN55032, CISPR 32 |
| Radiated | IEC/EN 60601-1-2,CISPR 11 | EN55032, CISPR 32 |
| Harmonic Currents | EN61000-3-2, Class A | EN61000-3-2, Class A |
| Voltage Flicker | EN61000-3-3 | EN61000-3-3 |
| Immunity | IEC/EN 60601-1-2 | EN55035, CISPR 35 |
| ESD | EN61000-4-2 | ±15kV air,±8kV contact |
| Radiated Immunity | EN61000-4-3 | 10V/m ,3V/m 80MHz - 2.7GMHz |
| EFT/Burst | EN61000-4-4 | ±2KV on AC port, ±1KV on signal ports |
| Surge | EN61000-4-5 | ±1KV line to line (different mode) |
| Conducted Immunity | EN61000-4-6 | 3Vrms, 6Vrms (0.15MHz-80MHz) |
| Magnetic Field | EN61000-4-8 | 30 A/m |
Dips & Interruptions | EN61000-4-11 | 0%, 70%, 0% of UT |
| Dielectric Withstand Voltage | 5,656VDC input to output |
| Insulation Resistance | 10M Ohms, 500VDC input to output |
