• Meets medical & I.T.E. safety
• 2 MOPP input to output isolation
• Touch current ≤ 10µA
• Energy efficiency level VI
• ≤ 0.075W standby power
• 5V to 24V outputs, up to 12W
• Up to 5,000m operating altitude
• Interchangeable AC plugs
• UES12LCP2-SPC (Lithium-ion battery charger)
| Model Number | Voltage (V) | Current (A) | Rated Power | Ripple & Noise (Max) | Voltage Tolerance | Line& Load Regulation | Efficiency (Average) | Start Up delay |
UES12LCP2-XXXYYYSPA UES12LCP2-XXXYYYSPC | 4.0-5.0 | 0.01-2.00 | 10.00W | 150mVpk-pk | ±7% | Line: ±1% Load: ±5% | 79.01% | ≤3s |
| 5.1-5.9 | 0.01-2.00 | 11.80W | 150mVpk-pk | ±7% | 80.19% | ≤3s | ||
| 6.1-7.0 | 0.01-1.71 | 12.00W | 150mVpk-pk | ±7% | 83.30% | ≤3s | ||
| 7.1-8.0 | 0.01-1.50 | 12.00W | 150mVpk-pk | ±7% | 83.30% | ≤3s | ||
| 8.1-8.9 | 0.01-1.33 | 12.00W | 150mVpk-pk | ±5% | 83.30% | ≤3s | ||
| 9.0-10.0 | 0.01-1.20 | 12.00W | 150mVpk-pk | ±5% | 83.30% | ≤3s | ||
| 10.1-11.0 | 0.01-1.09 | 12.00W | 150mVpk-pk | ±5% | 83.30% | ≤3s | ||
| 11.1-12.0 | 0.01-1.00 | 12.00W | 150mVpk-pk | ±5% | 83.30% | ≤3s | ||
| 12.1-13.0 | 0.01-0.94 | 12.00W | 200mVpk-pk | ±5% | 83.30% | ≤3s | ||
| 13.1-14.0 | 0.01-0.86 | 12.00W | 200mVpk-pk | ±5% | 83.30% | ≤3s | ||
| 14.1-15.0 | 0.01-0.80 | 12.00W | 200mVpk-pk | ±5% | 83.30% | ≤3s | ||
| 15.1-16.0 | 0.01-0.75 | 12.00W | 200mVpk-pk | ±5% | 83.30% | ≤3s | ||
| 16.1-17.0 | 0.01-0.71 | 12.00W | 200mVpk-pk | ±5% | 83.30% | ≤3s | ||
| 17.1-18.0 | 0.01-0.67 | 12.00W | 200mVpk-pk | ±5% | 83.30% | ≤3s | ||
| 18.1-19.0 | 0.01-0.63 | 12.00W | 200mVpk-pk | ±5% | 83.30% | ≤3s | ||
| 19.1-20.0 | 0.01-0.60 | 12.00W | 200mVpk-pk | ±5% | 83.30% | ≤3s | ||
| 20.1-21.0 | 0.01-0.57 | 12.00W | 200mVpk-pk | ±5% | 83.30% | ≤3s | ||
| 21.1-22.0 | 0.01-0.55 | 12.00W | 200mVpk-pk | ±5% | 83.30% | ≤3s | ||
| 22.1-23.0 | 0.01-0.52 | 12.00W | 200mVpk-pk | ±5% | 83.30% | ≤3s | ||
| 23.1-24.0 | 0.01-0.50 | 12.00W | 200mVpk-pk | ±5% | 83.30% | ≤3s |
Notes
(*1, 3, 4, 5) Other options are available, please contact our sales representative for details.
(*2) Measured at output connector with 20MHz bandwidth and 0.1 uF ceramic in parallel with 1 OuF electrolytic capacitors
Input Voltage Range | 80-264VAC |
| Frequency Range | 47-63Hz |
| Input Current | 0.5A at 90VAC |
| Inrush Current | 50A max at 240VAC cold start |
| Touch Leakage Current(Max) | ≤10μA at 264VAC |

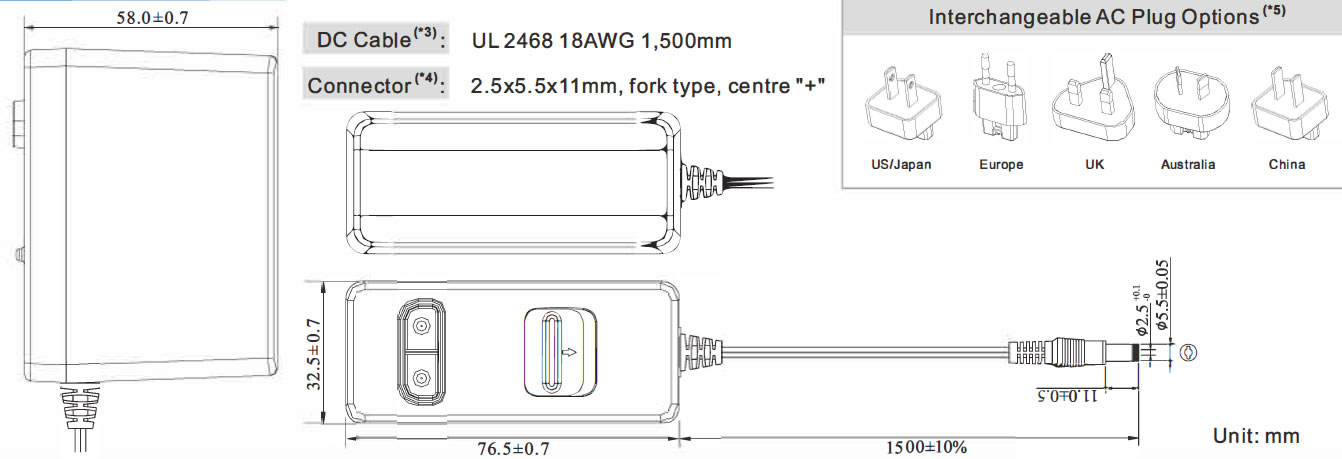

Dimensions(mm) | 76.5(L)x32.5(W)x58.0(H)mm |
| Weight | 130g |
| MTBF | ＞100,000hrs MIL-HKBK-217 at 25°C |
| Overload | 110-200% rated output power, auto recovery |
| Over Voltage | 120-150% rated output voltage input to reset |
| Short Circuit | Trip and restart (hiccup mode) |
| Safety Agency / Mark | Medical | ITE |
| CB | IEC60601-1/60601-1-11 | IEC62368 |
| UL | ANSI/AAMI ES60601-1/60601-1-11 | UL62368 |
| CAN/CSA-C22.2 NO. 60601-1 | - | |
| TUV SUD/Mark | EN60601-1/EN60601-1-11 | - |
| TUV SUD/GS | - | EN62368 |
| RCM | - | AS/NZS 62368 |
| CE | - | EN62368 |
| CCC | - | GB4943.1 |
| PSE | - | J62368 |
| KC | - | K60950-1 |
| FCC | - | FCC PART 15 |
| Emissons | Medical | ITE |
| Conducted | IEC/EN 60601-1-2,CISPR 11 | EN55032, CISPR 32 |
| Radiated | IEC/EN 60601-1-2,CISPR 11 | EN55032, CISPR 32 |
| Harmonic Currents | IEC/EN61000-3-2, Class A | EN61000-3-2, Class C |
| Voltage Flicker | EN61000-3-3 | EN61000-3-3 |
| Immunity | IEC/EN 60601-1-2 | EN55035, CISPR 35 |
| ESD | EN61000-4-2 | ±15KV air,±8KV contact |
| Radiated Immunity | EN61000-4-3 | 10V/m ,3V/m 80MHz - 2700MHz |
| EFT/Burst | EN61000-4-4 | ±2KV on AC port, ±1KV on signal ports |
| Surge | EN61000-4-5 | ±1KV line to line (different mode) |
| Conducted Immunity | EN61000-4-6 | 3Vrms, 6Vrms (0.15MHz-80MHz) |
| Magnetic Field | EN61000-4-8 | 30 A/m |
Dips & Interruptions | EN61000-4-11 | 0%, 70%, 0% of UT |
| Dielectric Withstand Voltage | 5,656VDC input to output |
| Insulation Resistance | 10M Ohms, 500VDC input to output |
