• Medical & I.T.E. safety approvals
• 2 MOPP input to output isolation
• Leakage current ≤100µA
• Energy efficiency level VI
• ≤ 0.075W standby power
• 12.0V or 24.0V outputs, up to 36W
• Up to 5,000m operating altitude
| Model Number | Voltage (V) | Current (A) | Rated Power | Ripple & Noise (max) | Voltage Tolerance | Line & Load Regulation | Efficiency | Start Up Delay |
| UES36WZ1-XXXYYYSPA | 12.0V | 0.01-3.00 | 36.00W | 120mVpk-pk | ±5% | Line: ±3% Load: ±5% | 88.3% | ≤3s |
| 19.0V | 0.01-1.89 | 36.00W | 240mVpk-pk | ±5% | 88.3% | ≤3s | ||
| 24.0V | 0.01-1.50 | 36.00W | 240mVpk-pk | ±5% | 88.3% | ≤3s |
Notes
(*1, 3, 4, 5)Other options are available, please contact our sales representative for details.
(*2) Measured at output connector with 20MHz bandwidth and 0.1uF ceramic in parallel with 10uF electrolytic capacitors.
Input Voltage Range | 90-264VAC |
| Frequency Range | 47-63Hz |
| Input Current | 0.5A at 90VAC |
| Inrush Current | 100A max at 240VAC cold start |
| Touch Leakage Current | ＜100μA at 264VAC |

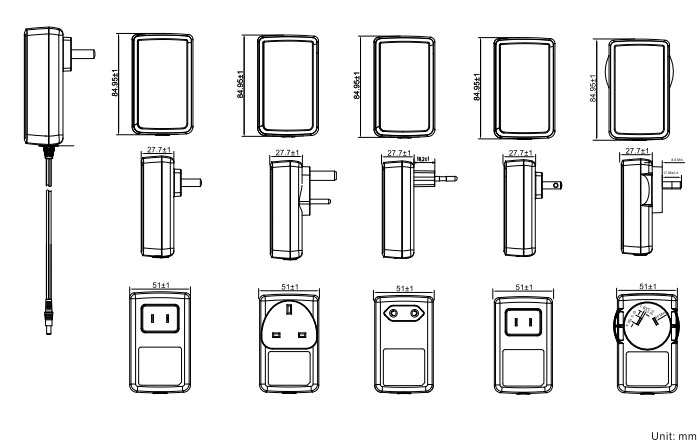

Dimensions(mm) | 84.95(L)x51(W)x27. 7(H)mm |
| Weight | 155g |
| MTBF | ＞100,000hrs MIL-HDBK-217 at 25°C |
| Overload | 110-200% rated output power, auto recovery |
| Over Voltage | 120-150% rated output voltage input to reset |
| Short Circuit | Trip and restart (hiccup mode) |
| Safety Agency/Mark | Medical | ITE |
| CCC | - | GB4943.1 |
| CB | IEC60601-1 | - |
| TUV | EN60601-1 | - |
| FCC | - | FCC PART 15 |
| NRTL | NRTLAAMIES60601 | - |
| Emissons | Medical | ITE |
| Conduction | IEC/EN 60601-1-2,CISPR 11 | EN55032, CISPR 32 |
| Radiation | IEC/EN 60601-1-2,CISPR 11 | EN55032, CISPR 32 |
| Harmonic Currents | EN61000-3-2, Class A | EN61000-3-2, Class C |
| Voltage Flicker | EN61000-3-3 | EN61000-3-3 |
| Immunity | IEC/EN 60601-1-2 | EN55035, CISPR 35 |
| ESD | IEC61000-4-2 | ±15KV air,±8KV contact |
| Radiated Immunity | IEC61000-4-3 | 10V/m ,3V/m 80MHz - 2.7GMHz |
| EFT/Burst | IEC61000-4-4 | ±2KV on AC port, ±1KV on signal ports |
| Surge | IEC61000-4-5 | ±6KV line to line (different mode) |
| Conducted Immunity | IEC61000-4-6 | 3Vrms, 6Vrms (0.15MHz-80MHz) |
| Magnetic Field | IEC61000-4-8 | 30 A/m |
Dips & Interruptions | IEC61000-4-11 | 0%, 70%, 0% of UT |
| Dielectric Withstand Voltage | 5,656 DC input to output |
| Insulation Resistance | 10M Ohms, 500VDC input to output |
