• Meets medical & I.T.E. safety
• 2 MOPP input to output isolation
• Touch current ≤100µA
• Earth Leakage current ≤5mA
• Energy effciency level Ⅴ
• ≤ 0.3W standby power
• 9V - 24V outputs, up to 48W
• Up to 3,048m operating altitude
• 3 types of AC inlet
| Model No. | Voltage (V) | Current (A) | Rated Power | Ripple & Noise (Max) | Voltage tolerance | Line& Load Regulation | Efficiency (Average) Min | Start Up delay |
| UE48-XXXYYYSPAZ | 9.0-12.0 | 0.01-4.02 | 48.24W | 200mVpk-pk | ±5% | Line:±1% Load: ±5% | 88.62% | ≤3s |
| 12.1-13.0 | 0.01-3.70 | 48.10W | 200mVpk-pk | ±5% | 88.61% | ≤3s | ||
| 13.1-14.0 | 0.01-3.43 | 48.00W | 200mVpk-pk | ±5% | 88.60% | ≤3s | ||
| 14.1-15.0 | 0.01-3.20 | 48.00W | 200mVpk-pk | ±5% | 88.59% | ≤3s | ||
| 15.1-16.0 | 0.01-3.00 | 48.00W | 200mVpk-pk | ±5% | 88.59% | ≤3s | ||
| 16.1-17.0 | 0.01-2.83 | 48.10W | 200mVpk-pk | ±5% | 88.61% | ≤3s | ||
| 17.1-18.0 | 0.01-2.67 | 48.10W | 200mVpk-pk | ±5% | 88.60% | ≤3s | ||
| 18.1-19.0 | 0.01-2.53 | 48.10W | 200mVpk-pk | ±5% | 88.60% | ≤3s | ||
| 19.1-20.0 | 0.01-2.40 | 48.00W | 200mVpk-pk | ±5% | 88.59% | ≤3s | ||
| 20.1-21.0 | 0.01-2.29 | 48.10W | 200mVpk-pk | ±5% | 88.61% | ≤3s | ||
| 21.1-22.0 | 0.01-2.19 | 48.20W | 200mVpk-pk | ±5% | 88.62% | ≤3s | ||
| 22.1-23.0 | 0.01-2.09 | 48.10W | 200mVpk-pk | ±5% | 88.60% | ≤3s | ||
| 23.1-24.0 | 0.01-2.01 | 48.24W | 200mVpk-pk | ±5% | 88.62% | ≤3s |

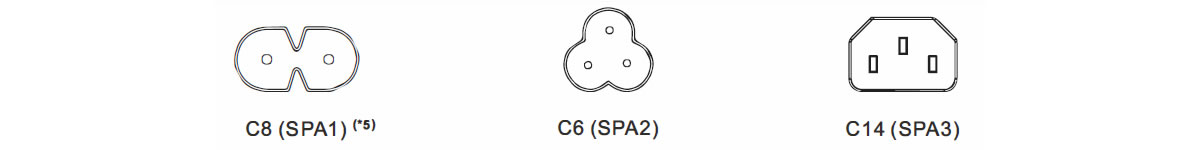

AC Inlet Options
Notes
(*1, 2, 3) Other options are available, please contact our sales representative for details.
Input Voltage Range | 90-264VAC |
| Frequency Range | 47-63Hz |
| Input Current | 1.1A at 90VAC |
| Inrush Current | 50A max at 240VAC cold start |
| Touch Leakage Current (max) | Class I ≤ 250µA & Class II ≤ 100µA at 264VAC |

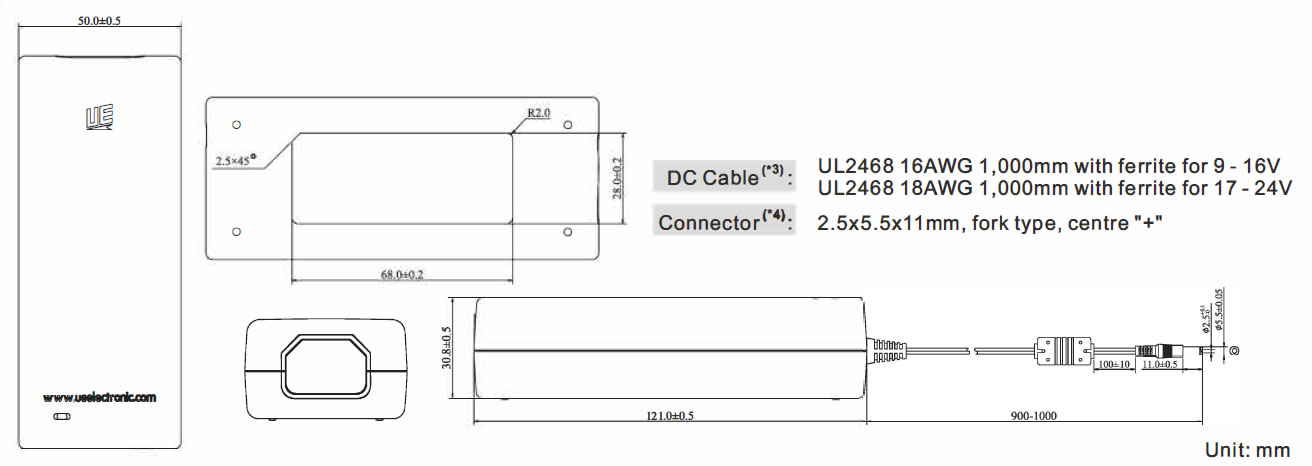

Dimensions(mm) | 121 (L)x50(W)x30.8(H)mm |
| Weight | 260g |
| MTBF | ＞100,000hrs MIL-HKBK-217 at 25°C |
| Overload | 120-280% rated output power, auto recovery |
| Over Voltage | 120-200% rated output voltage input to reset |
| Short Circuit | Trip and restart (hiccup mode) |
| Safety Agency / Mark | Medical | ITE |
| CB | IEC60601-1 | IEC60950-1 |
| UL | ANSI/AAMI ES60601-1 | - |
| CAN/CSA C22.2 NO. 60601-1 | ||
| TUV-SUD/Mark | EN60601-1 | - |
| TUV-SUD/GS | - | EN60950-1 |
| CCC | - | GB4943.1 (For Class I only) |
| PSE | - | J60950-1(For UE48-120300SPA1 only) |
| CE | - | EN60950 |
| FCC | - | FCC PART 15 |
| NOM | - | NOM-001-SCFI-2018 |
| Emissons | Medical | ITE |
| Conduction | IEC/EN 60601-1-2,CISPR 11 | EN55032,CISPR 32 |
| Radiation | IEC/EN 60601-1-2,CISPR 11 | EN55032, CISPR 32 |
| Harmonic Currents | IEC/EN61000-3-2, Class A | EN61000-3-2, Class A |
| Voltage Flicker | EN61000-3-3 | EN61000-3-3 |
| Immunity | IEC/EN 60601-1-2 | EN55035, CISPR 35 |
| ESD | IEC61000-4-2 | ±15KV air,±8KV contact |
| Radiated Immunity | IEC61000-4-3 | 10V/m ,3V/m 80MHz - 2.7GMHz |
| EFT/Burst | IEC61000-4-4 | ±2KV on AC port, ±1KV on signal ports |
| Surge | IEC61000-4-5 | ±1KV line to line (diff mode) |
| Conducted Immunity | IEC61000-4-6 | 3Vrms, 6Vrms (0.15MHz-80MHz) |
| Magnetic Field | IEC61000-4-8 | 30 A/m |
Dips & Interruptions | IEC61000-4-11 | 0%, 70%, 0% of UT |
| Dielectric Withstand Voltage | 2, 121VDC for Class I / 5,656VDC for Class Ⅱ input to output |
| Insulation Resistance | 10M Ohms, 500VDC input to output |
