• Meets medical & I.T.E. safety
• 2 MOPP input to output isolation
• Touch current ≤ 100µA
• Earth Leakage current ≤ 5mA
• Energy Efficiency Level VI
• ≤ 0.075 Watts Standby Power
• 9.1 - 54V outputs, up to 48W
• 5,000m Operating Altitude
| Model No. | Voltage (V) | Current (A) | Rated Power | Ripple & Noise (Max) | Voltage tolerance | Line& Load Regulation | Efficiency (Average) Min | Start Up delay |
| UES48-XXXYYYSPAZ | 9.1-10.0 | 0.01-4.50 | 45.00W | 120mVpk-pk | ±5% | Line:±1% Load: ±5% | 88.70% | ≤3s |
| 10.1-11.0 | 0.01-4.36 | 47.96W | 120mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 11.1-12.0 | 0.01-4.00 | 48.00W | 120mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 12.1-13.0 | 0.01-3.69 | 47.97W | 120mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 13.1-14.0 | 0.01-3.42 | 47.88W | 120mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 14.1-15.0 | 0.01-3.20 | 48.00W | 120mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 15.1-16.0 | 0.01-3.00 | 48.00W | 120mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 16.1-17.0 | 0.01-2.82 | 47.94W | 120mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 17.1-18.0 | 0.01-2.66 | 47.88W | 120mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 18.1-19.0 | 0.01-2.52 | 47.88W | 120mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 19.1-20.0 | 0.01-2.40 | 48.00W | 120mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 20.1-21.0 | 0.01-2.28 | 47.88W | 150mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 21.1-22.0 | 0.01-2.18 | 47.96W | 150mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 22.1-23.0 | 0.01-2.08 | 47.84W | 150mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 23.1-24.0 | 0.01-2.00 | 48.00W | 150mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 24.1-25.0 | 0.01-1.92 | 48.00W | 150mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 25.1-26.0 | 0.01-1.84 | 47.84W | 150mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 26.1-27.0 | 0.01-1.77 | 47.79W | 150mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 27.1-28.0 | 0.01-1.71 | 47.88W | 150mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 28.1-29.0 | 0.01-1.65 | 47.85W | 150mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 29.1-30.0 | 0.01-1.60 | 48.00W | 150mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 30.1-31.0 | 0.01-1.54 | 47.74W | 300mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 31.1-32.0 | 0.01-1.50 | 48.00W | 300mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 32.1-33.0 | 0.01-1.45 | 47.85W | 300mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 33.1-34.0 | 0.01-1.41 | 47.94W | 300mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 34.1-35.0 | 0.01-1.37 | 47.95W | 300mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 35.1-36.0 | 0.01-1.33 | 47.88W | 300mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 36.1-37.0 | 0.01-1.29 | 47.73W | 300mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 37.1-38.0 | 0.01-1.26 | 47.88W | 300mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 38.1-39.0 | 0.01-1.23 | 47.97W | 300mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 39.1-40.0 | 0.01-1.20 | 48.00W | 300mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 40.1-41.0 | 0.01-1.17 | 47.97W | 300mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 41.1-42.0 | 0.01-1.14 | 47.88W | 300mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 42.1-43.0 | 0.01-1.11 | 47.73W | 300mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 43.1-44.0 | 0.01-1.09 | 47.96W | 300mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 44.1-45.0 | 0.01-1.06 | 47.70W | 300mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 45.1-46.0 | 0.01-1.04 | 47.84W | 300mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 46.1-47.0 | 0.01-1.02 | 47.94W | 300mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 47.1-48.0 | 0.01-1.00 | 48.00W | 300mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 48.1-49.0 | 0.01-0.97 | 47.53W | 300mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 49.1-50.0 | 0.01-0.96 | 48.00W | 300mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 50.1-51.0 | 0.01-0.94 | 47.94W | 300mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 51.1-52.0 | 0.01-0.92 | 47.84W | 300mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 52.1-53.0 | 0.01-0.90 | 47.70W | 300mVpk-pk | ±5% | 89.00% | ≤3s | ||
| 53.1-54.0 | 0.01-0.88 | 47.52W | 300mVpk-pk | ±5% | 89.00% | ≤3s |
Model encoding. replace "Z" with "1" for CB (Class Ⅱ), "2" fo「 C6 (Class I), "3" for C14 (Class l)AC inlets
Notes
(*1, 2, 3) Other options are available, please contact our sales representative for details.
Input Voltage Range | 90-264VAC (Class I); 80-264VAC (Class II) |
| Frequency Range | 47-63Hz |
| Input Current | 1.1A at 90VAC |
| Inrush Current | 70A max at 240VAC cold start |
| Touch Leakage Current (max) | Class I & Class II ≤ 100µA at 264VAC |

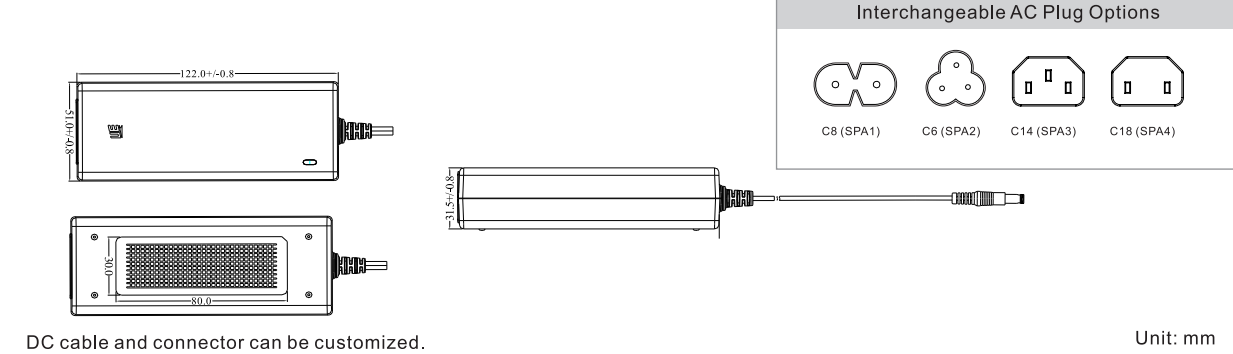

Dimensions(mm) | 122(L)x51(W)x31.5(H)mm |
| Weight | 240g |
| MTBF | ＞190,000hrs MIL-HDBK-217 at 25°C |
| Overload | 120-180% rated output power, auto recovery |
| Over Voltage | 120-180% rated output voltage input to reset |
| Short Circuit | Trip and restart (hiccup mode) |
| Safety Agency / Mark | Medical | ITE |
| CB | IEC60601-1, IEC60601-1-11 (Class II) | IEC60950-1 IEC62368-1 |
| UL | ANSI/AAMI ES60601-1 | UL60950-1 UL62368-1 |
| CAN/CSA C22.2 NO. 60601-1 | ||
| TUV Rheinland/Mark | EN60601-1,EN60601-1-11 (Class II) | - |
| TUV Rheinland/GS | - | EN60950-1 EN62368-1 |
| CCC | - | GB4943.1 |
| CE | - | EN62368 |
| PSE | - | J60950 |
| RCM | - | AS/NZS 60950.1 :2015 |
| KC | - | K60950-1 |
| FCC | - | FCC PART 15 |
| Emissons | Medical | ITE |
| Conduction | IEC/EN 60601-1-2,CISPR 11 | EN55032, CISPR 32 |
| Radiation | IEC/EN 60601-1-2,CISPR 11 | EN55032,CISPR 32 |
| Harmonic Currents | EN61000-3-2, Class A | EN61000-3-2, Class A |
| Voltage Flicker | EN61000-3-3 | EN61000-3-3 |
| Immunity | IEC/EN 60601-1-2 | EN55024, CISPR 24 |
| ESD | IEC61000-4-2 | ±15KV air,±8KV contact |
| Radiated Immunity | IEC61000-4-3 | 10V/m ,3V/m 80MHz - 2.7GMHz |
| EFT/Burst | IEC61000-4-4 | ±2KV on AC port, ±1KV on signal ports |
| Surge | IEC61000-4-5 | ±4KV line to line (different mode) |
| Conducted Immunity | IEC61000-4-6 | 3Vrms, 6Vrms (0.15MHz-80MHz) |
| Magnetic Field | IEC61000-4-8 | 30 A/m |
Dips & Interruptions | IEC61000-4-11 | 0%, 70%, 0% of UT |
| Dielectric Withstand Voltage | 5,656VDC input to output |
| Insulation Resistance | 10M Ohms, 500VDC input to output |
